dlna_config.h File Reference

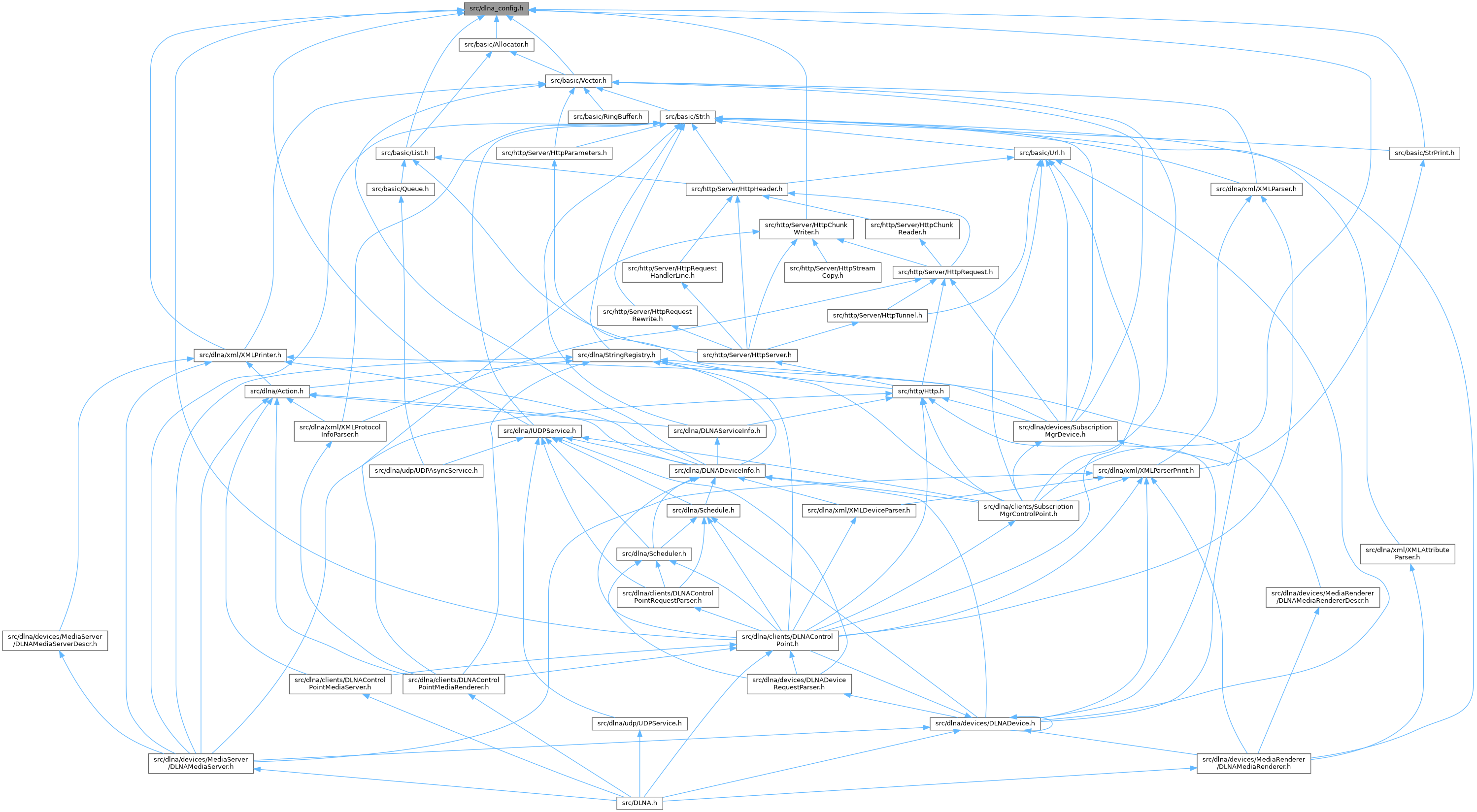

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	DLNA_LOOP_DELAY_MS   5
	Define delay in ms for main DLNA loop.
#define	DLNA_RUN_SCHEDULER_EVERY_MS   200
	Define scheduler run interval in ms.
#define	DLNA_RUN_SUBSCRIPTIONS_EVERY_MS   300
	Define subscription publish interval in ms.
#define	DLNA_HTTP_READ_TIMEOUT_MS   100
	Define the default http request timeout.
#define	DLNA_HTTP_REQUEST_TIMEOUT_MS   15000
	Define the default http request timeout.
#define	DLNA_REQUEST_KEEP_ALIVE   false
	Keep the session open for multiple requests.
#define	XML_PARSER_BUFFER_SIZE   512
	Define XML parse buffer size.
#define	STR_PRINT_INITIAL_SIZE   200
	Define initial size for StrPrint.
#define	STR_PRINT_INC_SIZE   200
	Define increment size for StrPrint.
#define	DLNA_SSDP_PORT   1900
	SSDP multicast/UDP port (default 1900)
#define	DLNA_MAX_URL_LEN   256
	app-wide max URL length
#define	MAX_PRINTF_SIZE   512
	Max printf buffer size.
#define	DLNA_PROTOCOL_ALL
	All possible protocols.
#define	DLNA_PROTOCOL_AUDIO
	All possible audio protocols.
#define	MAX_NOTIFY_RETIES   3
	Define maximum number of notify retries.
#define	DLNA_PROTOCOL   DLNA_PROTOCOL_AUDIO
	Define the default protocols to use.
#define	DLNA_ALLOCATOR   AllocatorPSRAM
	Define the default allocator base class to use: std::allocator, AllocatorPSRAM.
#define	DLNA_LOG_XML   false
	Enable or disable logging of XML messages.
#define	DLNA_CHECK_XML_LENGTH   false
#define	DLNA_DISCOVERY_NETMASK   IPAddress(255, 255, 255, 0)
	Define the netmask for discovery filtering.

Macro Definition Documentation

DLNA_ALLOCATOR

#define DLNA_ALLOCATOR   AllocatorPSRAM

Define the default allocator base class to use: std::allocator, AllocatorPSRAM.

DLNA_CHECK_XML_LENGTH

#define DLNA_CHECK_XML_LENGTH   false

DLNA_DISCOVERY_NETMASK

#define DLNA_DISCOVERY_NETMASK   IPAddress(255, 255, 255, 0)

Define the netmask for discovery filtering.

DLNA_HTTP_READ_TIMEOUT_MS

#define DLNA_HTTP_READ_TIMEOUT_MS   100

Define the default http request timeout.

DLNA_HTTP_REQUEST_TIMEOUT_MS

#define DLNA_HTTP_REQUEST_TIMEOUT_MS   15000

Define the default http request timeout.

DLNA_LOG_XML

#define DLNA_LOG_XML   false

Enable or disable logging of XML messages.

DLNA_LOOP_DELAY_MS

#define DLNA_LOOP_DELAY_MS   5

Define delay in ms for main DLNA loop.

DLNA_MAX_URL_LEN

#define DLNA_MAX_URL_LEN   256

app-wide max URL length

DLNA_PROTOCOL

#define DLNA_PROTOCOL   DLNA_PROTOCOL_AUDIO

Define the default protocols to use.

DLNA_PROTOCOL_ALL

#define DLNA_PROTOCOL_ALL

All possible protocols.

DLNA_PROTOCOL_AUDIO

#define DLNA_PROTOCOL_AUDIO

Value:

  "http-get:*:audio/mpeg:DLNA.ORG_PN=MP3,"                       \
  "http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMABASE,"               \
  "http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMAFULL,"               \
  "http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMAPRO,"                \
  "http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMALSL,"                \
  "http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMALSL_MULT5,"          \
  "http-get:*:audio/mp4:DLNA.ORG_PN=AAC_ISO_320,"                \
  "http-get:*:audio/3gpp:DLNA.ORG_PN=AAC_ISO_320,"               \
  "http-get:*:audio/mp4:DLNA.ORG_PN=AAC_ISO,"                    \
  "http-get:*:audio/mp4:DLNA.ORG_PN=AAC_MULT5_ISO,"              \
  "http-get:*:audio/L16;rate=44100;channels=2:DLNA.ORG_PN=LPCM," \
  "http-get:*:audio/x-wav:*,"                                    \
  "http-get:*:audio/x-flac:*,"                                   \
  "http-get:*:audio/x-dsd:*"

All possible audio protocols.

DLNA_REQUEST_KEEP_ALIVE

#define DLNA_REQUEST_KEEP_ALIVE   false

Keep the session open for multiple requests.

DLNA_RUN_SCHEDULER_EVERY_MS

#define DLNA_RUN_SCHEDULER_EVERY_MS   200

Define scheduler run interval in ms.

DLNA_RUN_SUBSCRIPTIONS_EVERY_MS

#define DLNA_RUN_SUBSCRIPTIONS_EVERY_MS   300

Define subscription publish interval in ms.

DLNA_SSDP_PORT

#define DLNA_SSDP_PORT   1900

SSDP multicast/UDP port (default 1900)

MAX_NOTIFY_RETIES

#define MAX_NOTIFY_RETIES   3

Define maximum number of notify retries.

MAX_PRINTF_SIZE

#define MAX_PRINTF_SIZE   512

Max printf buffer size.

STR_PRINT_INC_SIZE

#define STR_PRINT_INC_SIZE   200

Define increment size for StrPrint.

STR_PRINT_INITIAL_SIZE

#define STR_PRINT_INITIAL_SIZE   200

Define initial size for StrPrint.

XML_PARSER_BUFFER_SIZE

#define XML_PARSER_BUFFER_SIZE   512

Define XML parse buffer size.
