tiny_dlna::UDPService< UDPType > Class Template Reference

Access to UDP functionality: sending and receiving of data. More...

#include <UDPService.h>

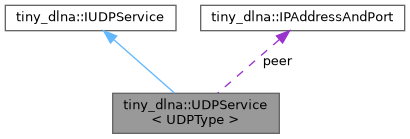

Inheritance diagram for tiny_dlna::UDPService< UDPType >:

Public Member Functions
	UDPService ()=default
bool	begin (int port) override
	Initialize UDP service on specified port.
bool	begin (IPAddressAndPort addr) override
	Initialize UDP service on specified address and port.
bool	send (uint8_t *data, int len) override
	Send data to the default destination.
bool	send (IPAddressAndPort addr, uint8_t *data, int len) override
	Send data to specified address and port.
RequestData	receive () override
	Receive incoming UDP data and peer information.

Protected Attributes
UDPType	udp
IPAddressAndPort	peer
bool	is_multicast = false

Detailed Description

template<typename UDPType>
class tiny_dlna::UDPService< UDPType >

Access to UDP functionality: sending and receiving of data.

This class is a template and requires you to specify the UDP implementation type. For example, use UDPService<WiFiUDP> for WiFiUDP or UDPService<MyUDPType> for a custom UDP class.

Usage: UDPService<WiFiUDP> udp; // Uses WiFiUDP UDPService<MyUDPType> udp2; // Uses custom UDP type

Implements IUDPService for sending and receiving UDP packets, including multicast support.

Template Parameters

UDPType

Arduino UDP implementation that provides the standard UDP interface (e.g. WiFiUDP, EthernetUDP).

Author

Phil Schatzmann

Constructor & Destructor Documentation

UDPService()

template<typename UDPType >

tiny_dlna::UDPService< UDPType >::UDPService ( )

default

Member Function Documentation

begin() [1/2]

template<typename UDPType >

bool tiny_dlna::UDPService< UDPType >::begin ( int  port )

inlineoverridevirtual

Initialize UDP service on specified port.

Implements tiny_dlna::IUDPService.

begin() [2/2]

template<typename UDPType >

bool tiny_dlna::UDPService< UDPType >::begin ( IPAddressAndPort  addr )

inlineoverridevirtual

Initialize UDP service on specified address and port.

Implements tiny_dlna::IUDPService.

receive()

template<typename UDPType >

RequestData tiny_dlna::UDPService< UDPType >::receive ( )

inlineoverridevirtual

Receive incoming UDP data and peer information.

Implements tiny_dlna::IUDPService.

send() [1/2]

template<typename UDPType >

bool tiny_dlna::UDPService< UDPType >::send ( IPAddressAndPort  addr, uint8_t *  data, int  len  )

inlineoverridevirtual

Send data to specified address and port.

Implements tiny_dlna::IUDPService.

send() [2/2]

template<typename UDPType >

bool tiny_dlna::UDPService< UDPType >::send ( uint8_t *  data, int  len  )

inlineoverridevirtual

Send data to the default destination.

Implements tiny_dlna::IUDPService.

Member Data Documentation

is_multicast

template<typename UDPType >

bool tiny_dlna::UDPService< UDPType >::is_multicast = false

protected

peer

template<typename UDPType >

IPAddressAndPort tiny_dlna::UDPService< UDPType >::peer

protected

udp

template<typename UDPType >

UDPType tiny_dlna::UDPService< UDPType >::udp

protected

---

The documentation for this class was generated from the following file:

• src/dlna/udp/UDPService.h
