tiny_dlna::UDPAsyncService Class Reference

Access to UDP functionality: sending and receiving of data using the Async API of the ESP32. More...

#include <UDPAsyncService.h>

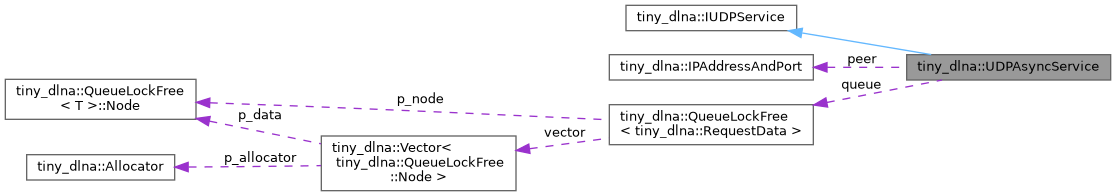

Inheritance diagram for tiny_dlna::UDPAsyncService:

Public Member Functions
bool	begin (int port)
	Initialize UDP service on specified port.
bool	begin (IPAddressAndPort addr)
	Initialize UDP service on specified address and port.
bool	send (uint8_t *data, int len)
	Send data to the default destination.
bool	send (IPAddressAndPort addr, uint8_t *data, int len)
	Send data to specified address and port.
RequestData	receive ()
	Receive incoming UDP data and peer information.

Protected Attributes
AsyncUDP	udp
IPAddressAndPort	peer
Queue< RequestData >	queue

Detailed Description

Access to UDP functionality: sending and receiving of data using the Async API of the ESP32.

Author

Phil Schatzmann

Member Function Documentation

begin() [1/2]

bool tiny_dlna::UDPAsyncService::begin ( int  port )

inlinevirtual

Initialize UDP service on specified port.

Implements tiny_dlna::IUDPService.

begin() [2/2]

bool tiny_dlna::UDPAsyncService::begin ( IPAddressAndPort  addr )

inlinevirtual

Initialize UDP service on specified address and port.

Implements tiny_dlna::IUDPService.

receive()

RequestData tiny_dlna::UDPAsyncService::receive ( )

inlinevirtual

Receive incoming UDP data and peer information.

Implements tiny_dlna::IUDPService.

send() [1/2]

bool tiny_dlna::UDPAsyncService::send ( IPAddressAndPort  addr, uint8_t *  data, int  len  )

inlinevirtual

Send data to specified address and port.

Implements tiny_dlna::IUDPService.

send() [2/2]

bool tiny_dlna::UDPAsyncService::send ( uint8_t *  data, int  len  )

inlinevirtual

Send data to the default destination.

Implements tiny_dlna::IUDPService.

Member Data Documentation

peer

IPAddressAndPort tiny_dlna::UDPAsyncService::peer

protected

queue

Queue<RequestData> tiny_dlna::UDPAsyncService::queue

protected

udp

AsyncUDP tiny_dlna::UDPAsyncService::udp

protected

---

The documentation for this class was generated from the following file:

• src/dlna/udp/UDPAsyncService.h
