Represents a notification/notify reply scheduled for control-point processing. More...

#include <Schedule.h>

Inheritance diagram for tiny_dlna::NotifyReplyCP:

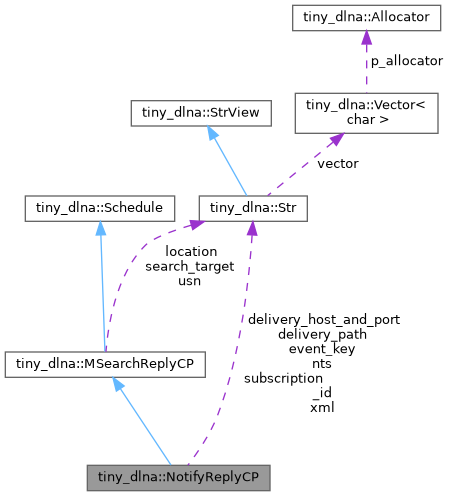

Collaboration diagram for tiny_dlna::NotifyReplyCP:

[legend]

Public Member Functions
const char *	name () override

bool	process (IUDPService &udp) override

const char *	name () override

bool	process (IUDPService &udp) override

Public Member Functions inherited from tiny_dlna::Schedule
virtual bool	process (IUDPService &udp)

virtual const char *	name ()

	operator bool ()

Public Attributes
Str	nts {80}

Str	delivery_host_and_port

Str	delivery_path

Str	subscription_id

Str	event_key

Str	xml

std::function< bool(NotifyReplyCP &ref)>	callback

Public Attributes inherited from tiny_dlna::MSearchReplyCP
Str	location

Str	usn

Str	search_target

Public Attributes inherited from tiny_dlna::Schedule
uint64_t	time = 0

uint32_t	repeat_ms = 0

uint64_t	end_time = 0

bool	active = false

Detailed Description

Represents a notification/notify reply scheduled for control-point processing.

Instances are created when the control-point receives SSDP/HTTP notify messages (for example via an attached HTTP server or UDP listener). The object carries parsed headers and the event payload and provides a callback that the control-point can invoke to let an application consumer handle the notification.

Fields of interest:

nts : the NTS header value (e.g. "ssdp:alive" or "ssdp:byebye").
delivery_host_and_port : host:port that delivered the notification.
delivery_path : path portion of the delivery URL (if available).
subscription_id : SID header (subscription identifier) for eventing.
event_key : optional event sequence key.
xml : raw event XML body (for property change parsing).
callback : application-provided handler with signature bool callback(NotifyReplyCP &ref). The handler should return true if it handled the notification, false if it did not.

The process() implementation calls callback and logs whether the notification was handled. This struct inherits from MSearchReplyCP so it can be scheduled and executed by the control-point scheduler.

Member Function Documentation

◆ name()

const char * tiny_dlna::NotifyReplyCP::name ( )

inlineoverridevirtual

Reimplemented from tiny_dlna::MSearchReplyCP.

◆ process()

bool tiny_dlna::NotifyReplyCP::process ( IUDPService & udp )

inlineoverridevirtual

Reimplemented from tiny_dlna::MSearchReplyCP.

Member Data Documentation

◆ callback

std::function<bool(NotifyReplyCP &ref)> tiny_dlna::NotifyReplyCP::callback

◆ delivery_host_and_port

Str tiny_dlna::NotifyReplyCP::delivery_host_and_port

◆ delivery_path

Str tiny_dlna::NotifyReplyCP::delivery_path

◆ event_key

Str tiny_dlna::NotifyReplyCP::event_key

◆ nts

Str tiny_dlna::NotifyReplyCP::nts {80}

◆ subscription_id

Str tiny_dlna::NotifyReplyCP::subscription_id

◆ xml

Str tiny_dlna::NotifyReplyCP::xml

The documentation for this class was generated from the following file:

src/dlna/Schedule.h
