tiny_dlna::HttpServer< ClientType, ServerType > Class Template Reference

Header-only HTTP server wrapper that registers callback handlers. More...

#include <HttpServer.h>

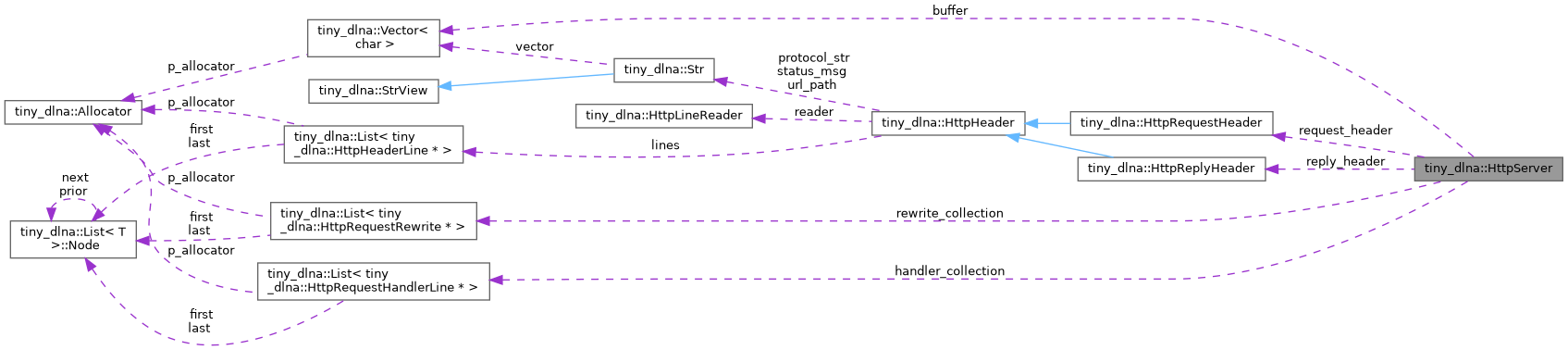

Inheritance diagram for tiny_dlna::HttpServer< ClientType, ServerType >:

Public Member Functions
	HttpServer (ServerType &server, int bufferSize=1024)
	~HttpServer () override
IPAddress &	localIP () override
	Provides the local ip address.
bool	begin () override
	Starts the server.
void	end () override
	stops the server_ptr
void	rewrite (const char *from, const char *to) override
	adds a rewrite rule
void	on (const char *url, TinyMethodID method, web_callback_fn fn, void *ctx[]=nullptr, int ctxCount=0) override
	register a generic handler
void	on (const char *url, TinyMethodID method, const char *mime, web_callback_fn fn) override
	register a handler with mime
void	on (const char *url, TinyMethodID method, const char *mime, const char *result) override
	register a handler which provides the indicated string
void	on (const char *url, TinyMethodID method, const char *mime, const uint8_t *data, int len) override
	register a handler which provides the indicated string
void	on (const char *url, TinyMethodID method, Url &redirect) override
	register a redirection
bool	onRequest (const char *path) override
void	replyChunked (const char *contentType, Stream &inputStream, int status=200, const char *msg=SUCCESS) override
	chunked reply with data from an input stream
void	replyChunked (const char *contentType, int status=200, const char *msg=SUCCESS) override
	start of chunked reply: use HttpChunkWriter to provde the data
void	reply (const char *contentType, Stream &inputStream, int size, int status=200, const char *msg=SUCCESS) override
	write reply - copies data from input stream with header size
void	reply (const char *contentType, size_t(*callback)(Print &out, void *ref), int status=200, const char *msg=SUCCESS, void *ref=nullptr) override
	write reply - using callback that writes to stream
void	reply (const char *contentType, const char *str, int status=200, const char *msg=SUCCESS) override
	write reply - string with header size
void	reply (const char *contentType, const uint8_t *str, int len, int status=200, const char *msg=SUCCESS) override
	Send binary data response.
void	replyOK () override
	write OK reply with 200 SUCCESS
void	replyNotFound () override
	write 404 reply
void	replyError (int err, const char *msg="Internal Server Error") override
	Send error response with status code.
HttpRequestHeader &	requestHeader () override
	provides the request header
HttpReplyHeader &	replyHeader () override
	provides the reply header
void	endClient () override
	closes the connection to the current client_ptr
void	crlf () override
	print a CR LF
void	addHandler (HttpRequestHandlerLine *handlerLinePtr) override
	adds a new handler
bool	doLoop () override
	Legacy method: same as copy();.
bool	copy () override
	Call this method from your loop!
ClientType &	client () override
	Provides the current client.
	operator bool () override
	Provides true if the server has been started.
bool	isActive () override
	Check if server is active.
const char *	localHost () override
	Determines the local ip address.
void	setNoConnectDelay (int delay) override
	Set no-connect delay.
Str	contentStr () override
	converts the client content to a string
void	setReference (void *reference) override
	Definesa reference/context object.
void *	getReference () override
	Provides access to a reference/context object.

Protected Member Functions
void	removeClosedClients ()
void	reply (int status, const char *msg)
	Writes the status and message to the reply.
const char *	nullstr (const char *in)
	Converts null to an empty string.
void	processRequest ()
const char *	resolveRewrite (const char *from)
bool	matchesMime (const char *handler_mime, const char *request_mime)

Protected Attributes
HttpRequestHeader	request_header
HttpReplyHeader	reply_header
List< HttpRequestHandlerLine * >	handler_collection
List< HttpRequestRewrite * >	rewrite_collection
List< ClientType >	open_clients
List< ClientType >::Iterator	current_client_iterator
ClientType *	client_ptr = nullptr
ServerType *	server_ptr = nullptr
bool	is_active
Vector< char >	buffer {0}
const char *	local_host = nullptr
int	no_connect_delay = 5
void *	ref = nullptr

Detailed Description

template<typename ClientType, typename ServerType>
class tiny_dlna::HttpServer< ClientType, ServerType >

Header-only HTTP server wrapper that registers callback handlers.

This server is templated so you can provide the concrete Arduino networking classes that back the transport. ClientType is the socket implementation accepted from the server (for example WiFiClient or EthernetClient) and ServerType is the listener type (for example WiFiServer). Default template arguments keep the legacy WiFi behaviour intact, while custom transports can swap in their own client/server types.

Template Parameters

ClientType	Arduino client class accepted from the listener (e.g. WiFiClient, EthernetClient).
ServerType	Arduino server/listener class that produces ClientType instances (e.g. WiFiServer, EthernetServer).

Constructor & Destructor Documentation

HttpServer()

template<typename ClientType , typename ServerType >

tiny_dlna::HttpServer< ClientType, ServerType >::HttpServer ( ServerType &  server, int  bufferSize = 1024  )

inline

~HttpServer()

template<typename ClientType , typename ServerType >

tiny_dlna::HttpServer< ClientType, ServerType >::~HttpServer ( )

inlineoverride

Member Function Documentation

addHandler()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::addHandler ( HttpRequestHandlerLine *  handlerLinePtr )

inlineoverridevirtual

adds a new handler

Implements tiny_dlna::IHttpServer.

begin()

template<typename ClientType , typename ServerType >

bool tiny_dlna::HttpServer< ClientType, ServerType >::begin ( )

inlineoverridevirtual

Starts the server.

Implements tiny_dlna::IHttpServer.

client()

template<typename ClientType , typename ServerType >

ClientType & tiny_dlna::HttpServer< ClientType, ServerType >::client ( )

inlineoverridevirtual

Provides the current client.

Implements tiny_dlna::IHttpServer.

contentStr()

template<typename ClientType , typename ServerType >

Str tiny_dlna::HttpServer< ClientType, ServerType >::contentStr ( )

inlineoverridevirtual

converts the client content to a string

Implements tiny_dlna::IHttpServer.

copy()

template<typename ClientType , typename ServerType >

bool tiny_dlna::HttpServer< ClientType, ServerType >::copy ( )

inlineoverridevirtual

Call this method from your loop!

Implements tiny_dlna::IHttpServer.

crlf()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::crlf ( )

inlineoverridevirtual

print a CR LF

Implements tiny_dlna::IHttpServer.

doLoop()

template<typename ClientType , typename ServerType >

bool tiny_dlna::HttpServer< ClientType, ServerType >::doLoop ( )

inlineoverridevirtual

Legacy method: same as copy();.

Implements tiny_dlna::IHttpServer.

end()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::end ( )

inlineoverridevirtual

stops the server_ptr

Implements tiny_dlna::IHttpServer.

endClient()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::endClient ( )

inlineoverridevirtual

closes the connection to the current client_ptr

Implements tiny_dlna::IHttpServer.

getReference()

template<typename ClientType , typename ServerType >

void * tiny_dlna::HttpServer< ClientType, ServerType >::getReference ( )

inlineoverridevirtual

Provides access to a reference/context object.

Implements tiny_dlna::IHttpServer.

isActive()

template<typename ClientType , typename ServerType >

bool tiny_dlna::HttpServer< ClientType, ServerType >::isActive ( )

inlineoverridevirtual

Check if server is active.

Implements tiny_dlna::IHttpServer.

localHost()

template<typename ClientType , typename ServerType >

const char * tiny_dlna::HttpServer< ClientType, ServerType >::localHost ( )

inlineoverridevirtual

Determines the local ip address.

Implements tiny_dlna::IHttpServer.

localIP()

template<typename ClientType , typename ServerType >

IPAddress & tiny_dlna::HttpServer< ClientType, ServerType >::localIP ( )

inlineoverridevirtual

Provides the local ip address.

Implements tiny_dlna::IHttpServer.

matchesMime()

template<typename ClientType , typename ServerType >

bool tiny_dlna::HttpServer< ClientType, ServerType >::matchesMime ( const char *  handler_mime, const char *  request_mime  )

inlineprotected

compares mime of handler with mime of request: provides true if they match of one is null (=any value)

nullstr()

template<typename ClientType , typename ServerType >

const char * tiny_dlna::HttpServer< ClientType, ServerType >::nullstr ( const char *  in )

inlineprotected

Converts null to an empty string.

on() [1/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::on ( const char *  url, TinyMethodID  method, const char *  mime, const char *  result  )

inlineoverridevirtual

register a handler which provides the indicated string

Implements tiny_dlna::IHttpServer.

on() [2/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::on ( const char *  url, TinyMethodID  method, const char *  mime, const uint8_t *  data, int  len  )

inlineoverridevirtual

register a handler which provides the indicated string

Implements tiny_dlna::IHttpServer.

on() [3/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::on ( const char *  url, TinyMethodID  method, const char *  mime, web_callback_fn  fn  )

inlineoverridevirtual

register a handler with mime

Implements tiny_dlna::IHttpServer.

on() [4/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::on ( const char *  url, TinyMethodID  method, Url &  redirect  )

inlineoverridevirtual

register a redirection

Implements tiny_dlna::IHttpServer.

on() [5/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::on ( const char *  url, TinyMethodID  method, web_callback_fn  fn, void *  ctx[] = nullptr, int  ctxCount = 0  )

inlineoverridevirtual

register a generic handler

Implements tiny_dlna::IHttpServer.

onRequest()

template<typename ClientType , typename ServerType >

bool tiny_dlna::HttpServer< ClientType, ServerType >::onRequest ( const char *  path )

inlineoverridevirtual

generic handler - you can overwrite this method to provide your specifc processing logic

Implements tiny_dlna::IHttpServer.

operator bool()

template<typename ClientType , typename ServerType >

tiny_dlna::HttpServer< ClientType, ServerType >::operator bool ( )

inlineoverridevirtual

Provides true if the server has been started.

Implements tiny_dlna::IHttpServer.

processRequest()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::processRequest ( )

inlineprotected

removeClosedClients()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::removeClosedClients ( )

inlineprotected

reply() [1/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::reply ( const char *  contentType, const char *  str, int  status = 200, const char *  msg = SUCCESS  )

inlineoverridevirtual

write reply - string with header size

Implements tiny_dlna::IHttpServer.

reply() [2/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::reply ( const char *  contentType, const uint8_t *  str, int  len, int  status = 200, const char *  msg = SUCCESS  )

inlineoverridevirtual

Send binary data response.

Implements tiny_dlna::IHttpServer.

reply() [3/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::reply ( const char *  contentType, size_t(*)(Print &out, void *ref)  callback, int  status = 200, const char *  msg = SUCCESS, void *  ref = nullptr  )

inlineoverridevirtual

write reply - using callback that writes to stream

Implements tiny_dlna::IHttpServer.

reply() [4/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::reply ( const char *  contentType, Stream &  inputStream, int  size, int  status = 200, const char *  msg = SUCCESS  )

inlineoverridevirtual

write reply - copies data from input stream with header size

Implements tiny_dlna::IHttpServer.

reply() [5/5]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::reply ( int  status, const char *  msg  )

inlineprotected

Writes the status and message to the reply.

replyChunked() [1/2]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::replyChunked ( const char *  contentType, int  status = 200, const char *  msg = SUCCESS  )

inlineoverridevirtual

start of chunked reply: use HttpChunkWriter to provde the data

Implements tiny_dlna::IHttpServer.

replyChunked() [2/2]

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::replyChunked ( const char *  contentType, Stream &  inputStream, int  status = 200, const char *  msg = SUCCESS  )

inlineoverridevirtual

chunked reply with data from an input stream

Implements tiny_dlna::IHttpServer.

replyError()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::replyError ( int  err, const char *  msg = "Internal Server Error"  )

inlineoverridevirtual

Send error response with status code.

Implements tiny_dlna::IHttpServer.

replyHeader()

template<typename ClientType , typename ServerType >

HttpReplyHeader & tiny_dlna::HttpServer< ClientType, ServerType >::replyHeader ( )

inlineoverridevirtual

provides the reply header

Implements tiny_dlna::IHttpServer.

replyNotFound()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::replyNotFound ( )

inlineoverridevirtual

write 404 reply

Implements tiny_dlna::IHttpServer.

replyOK()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::replyOK ( )

inlineoverridevirtual

write OK reply with 200 SUCCESS

Implements tiny_dlna::IHttpServer.

requestHeader()

template<typename ClientType , typename ServerType >

HttpRequestHeader & tiny_dlna::HttpServer< ClientType, ServerType >::requestHeader ( )

inlineoverridevirtual

provides the request header

Implements tiny_dlna::IHttpServer.

resolveRewrite()

template<typename ClientType , typename ServerType >

const char * tiny_dlna::HttpServer< ClientType, ServerType >::resolveRewrite ( const char *  from )

inlineprotected

determiens the potentially rewritten url which should be used for the further processing

rewrite()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::rewrite ( const char *  from, const char *  to  )

inlineoverridevirtual

adds a rewrite rule

Implements tiny_dlna::IHttpServer.

setNoConnectDelay()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::setNoConnectDelay ( int  delay )

inlineoverridevirtual

Set no-connect delay.

Implements tiny_dlna::IHttpServer.

setReference()

template<typename ClientType , typename ServerType >

void tiny_dlna::HttpServer< ClientType, ServerType >::setReference ( void *  reference )

inlineoverridevirtual

Definesa reference/context object.

Implements tiny_dlna::IHttpServer.

Member Data Documentation

buffer

template<typename ClientType , typename ServerType >

Vector<char> tiny_dlna::HttpServer< ClientType, ServerType >::buffer {0}

protected

client_ptr

template<typename ClientType , typename ServerType >

ClientType* tiny_dlna::HttpServer< ClientType, ServerType >::client_ptr = nullptr

protected

current_client_iterator

template<typename ClientType , typename ServerType >

List<ClientType>::Iterator tiny_dlna::HttpServer< ClientType, ServerType >::current_client_iterator

protected

Initial value:

=
      open_clients.begin()

handler_collection

template<typename ClientType , typename ServerType >

List<HttpRequestHandlerLine*> tiny_dlna::HttpServer< ClientType, ServerType >::handler_collection

protected

is_active

template<typename ClientType , typename ServerType >

bool tiny_dlna::HttpServer< ClientType, ServerType >::is_active

protected

local_host

template<typename ClientType , typename ServerType >

const char* tiny_dlna::HttpServer< ClientType, ServerType >::local_host = nullptr

protected

no_connect_delay

template<typename ClientType , typename ServerType >

int tiny_dlna::HttpServer< ClientType, ServerType >::no_connect_delay = 5

protected

open_clients

template<typename ClientType , typename ServerType >

List<ClientType> tiny_dlna::HttpServer< ClientType, ServerType >::open_clients

protected

ref

template<typename ClientType , typename ServerType >

void* tiny_dlna::HttpServer< ClientType, ServerType >::ref = nullptr

protected

reply_header

template<typename ClientType , typename ServerType >

HttpReplyHeader tiny_dlna::HttpServer< ClientType, ServerType >::reply_header

protected

request_header

template<typename ClientType , typename ServerType >

HttpRequestHeader tiny_dlna::HttpServer< ClientType, ServerType >::request_header

protected

rewrite_collection

template<typename ClientType , typename ServerType >

List<HttpRequestRewrite*> tiny_dlna::HttpServer< ClientType, ServerType >::rewrite_collection

protected

server_ptr

template<typename ClientType , typename ServerType >

ServerType* tiny_dlna::HttpServer< ClientType, ServerType >::server_ptr = nullptr

protected

---

The documentation for this class was generated from the following file:

• src/http/Server/HttpServer.h
