tiny_dlna::DLNADeviceInfo Class Reference

Device Attributes and generation of XML using urn:schemas-upnp-org:device-1-0. We could just return a predefined device xml document, but we provide a dynamic generation of the service xml which should be more memory efficient. Strings are represented as char*, so you can assign values that are stored in ProgMem to minimize the RAM usage. If you need to keep the values on the heap you can use addString() method. More...

#include <DLNADeviceInfo.h>

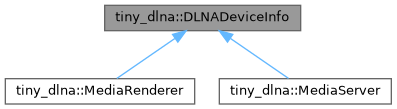

Inheritance diagram for tiny_dlna::DLNADeviceInfo:

Public Member Functions
	DLNADeviceInfo (bool ok=true)
	DLNADeviceInfo (const DLNADeviceInfo &other)
	~DLNADeviceInfo ()
virtual bool	begin ()
	Override to initialize the device.
size_t	print (Print &out, void *ref=nullptr)
	renders the device xml into the provided Print output.
void	setDeviceType (const char *st)
const char *	getDeviceType ()
void	setUDN (const char *id)
	Define the udn uuid.
const char *	getUDN ()
	Provide the udn uuid.
void	setBaseURL (const char *url)
	Defines the base url.
void	setBaseURL (IPAddress ip, int port, const char *path=nullptr)
	Defines the base URL.
const char *	getBaseURL ()
	Provides the base url.
Url &	getDeviceURL ()
	This method returns base url/device.xml.
void	setIPAddress (IPAddress address)
	Defines the local IP address.
IPAddress	getIPAddress ()
	Provides the local IP address.
const char *	getIPStr ()
	Provides the local address as string.
void	setNS (const char *ns)
const char *	getNS ()
void	setFriendlyName (const char *name)
const char *	getFriendlyName ()
void	setManufacturer (const char *man)
const char *	getManufacturer ()
void	setManufacturerURL (const char *url)
const char *	getManufacturerURL ()
void	setModelDescription (const char *descr)
const char *	getModelDescription ()
void	setModelName (const char *name)
const char *	getModelName ()
void	setModelNumber (const char *number)
const char *	getModelNumber ()
void	setSerialNumber (const char *sn)
const char *	getSerialNumber ()
void	setUniversalProductCode (const char *upc)
const char *	getUniversalProductCode ()
void	addService (DLNAServiceInfo s)
	Adds a service definition.
DLNAServiceInfo &	getService (const char *id)
	Finds a service definition by name.
DLNAServiceInfo &	getServiceByAbbrev (const char *abbrev)
	Finds a service definition by name.
Vector< DLNAServiceInfo > &	getServices ()
	Provides all service definitions.
void	clear ()
	Clears all device information.
void	clearIcons ()
	Overwrite the default icon.
void	addIcon (Icon icon)
	adds an icon
Icon	getIcon (int idx=0)
	Provides the item at indix.
void	setActive (bool flag)
	Sets the server to inactive.
	operator bool ()
	return true if active
virtual bool	loop ()
	loop processing
void	setSubscriptionActive (bool flag)
bool	isSubscriptionActive ()

Protected Member Functions
virtual void	setupServices (IHttpServer &server, IUDPService &udp)
	to be implemented by subclasses
size_t	printRoot (Print &out, void *ref)
size_t	printDevice (Print &out, void *ref)
size_t	printSpecVersion (Print &out, void *ref)
size_t	printServiceList (Print &out, void *ref)
size_t	printService (Print &out, void *srv)
size_t	printIconList (Print &out, void *ref)
size_t	printIconDlnaInfo (Print &out, Icon *icon)

Protected Attributes
bool	is_active = false
Url	device_url
IPAddress	localhost
int	version_major = 1
int	version_minor = 0
Str	base_url = "http://localhost:9876/dlna"
Str	udn = "uuid:09349455-2941-4cf7-9847-0dd5ab210e97"
Str	ns = "xmlns=\"urn:schemas-upnp-org:device-1-0\""
Str	device_type
Str	friendly_name
Str	manufacturer
Str	manufacturer_url
Str	model_description
Str	model_name
Str	model_url
Str	model_number
Str	serial_number
Str	universal_product_code
Icon	icon
Vector< DLNAServiceInfo >	services
Vector< Icon >	icons
Str	url_str
bool	is_subcription_active = false

Friends
class	XMLDeviceParser
class	DLNAControlPoint
template<typename >
class	DLNADevice

Detailed Description

Device Attributes and generation of XML using urn:schemas-upnp-org:device-1-0. We could just return a predefined device xml document, but we provide a dynamic generation of the service xml which should be more memory efficient. Strings are represented as char*, so you can assign values that are stored in ProgMem to minimize the RAM usage. If you need to keep the values on the heap you can use addString() method.

Author

Phil Schatzmann

Constructor & Destructor Documentation

DLNADeviceInfo() [1/2]

tiny_dlna::DLNADeviceInfo::DLNADeviceInfo ( bool  ok = true )

inline

DLNADeviceInfo() [2/2]

tiny_dlna::DLNADeviceInfo::DLNADeviceInfo ( const DLNADeviceInfo &  other )

inline

~DLNADeviceInfo()

tiny_dlna::DLNADeviceInfo::~DLNADeviceInfo ( )

inline

Member Function Documentation

addIcon()

void tiny_dlna::DLNADeviceInfo::addIcon ( Icon  icon )

inline

adds an icon

addService()

void tiny_dlna::DLNADeviceInfo::addService ( DLNAServiceInfo  s )

inline

Adds a service definition.

begin()

virtual bool tiny_dlna::DLNADeviceInfo::begin ( )

inlinevirtual

Override to initialize the device.

Reimplemented in tiny_dlna::DLNAMediaRenderer< ClientType >, and tiny_dlna::DLNAMediaServer< ClientType >.

clear()

void tiny_dlna::DLNADeviceInfo::clear ( )

inline

Clears all device information.

clearIcons()

void tiny_dlna::DLNADeviceInfo::clearIcons ( )

inline

Overwrite the default icon.

getBaseURL()

const char * tiny_dlna::DLNADeviceInfo::getBaseURL ( )

inline

Provides the base url.

getDeviceType()

const char * tiny_dlna::DLNADeviceInfo::getDeviceType ( )

inline

getDeviceURL()

Url & tiny_dlna::DLNADeviceInfo::getDeviceURL ( )

inline

This method returns base url/device.xml.

getFriendlyName()

const char * tiny_dlna::DLNADeviceInfo::getFriendlyName ( )

inline

getIcon()

Icon tiny_dlna::DLNADeviceInfo::getIcon ( int  idx = 0 )

inline

Provides the item at indix.

getIPAddress()

IPAddress tiny_dlna::DLNADeviceInfo::getIPAddress ( )

inline

Provides the local IP address.

getIPStr()

const char * tiny_dlna::DLNADeviceInfo::getIPStr ( )

inline

Provides the local address as string.

getManufacturer()

const char * tiny_dlna::DLNADeviceInfo::getManufacturer ( )

inline

getManufacturerURL()

const char * tiny_dlna::DLNADeviceInfo::getManufacturerURL ( )

inline

getModelDescription()

const char * tiny_dlna::DLNADeviceInfo::getModelDescription ( )

inline

getModelName()

const char * tiny_dlna::DLNADeviceInfo::getModelName ( )

inline

getModelNumber()

const char * tiny_dlna::DLNADeviceInfo::getModelNumber ( )

inline

getNS()

const char * tiny_dlna::DLNADeviceInfo::getNS ( )

inline

getSerialNumber()

const char * tiny_dlna::DLNADeviceInfo::getSerialNumber ( )

inline

getService()

DLNAServiceInfo & tiny_dlna::DLNADeviceInfo::getService ( const char *  id )

inline

Finds a service definition by name.

getServiceByAbbrev()

DLNAServiceInfo & tiny_dlna::DLNADeviceInfo::getServiceByAbbrev ( const char *  abbrev )

inline

Finds a service definition by name.

getServices()

Vector< DLNAServiceInfo > & tiny_dlna::DLNADeviceInfo::getServices ( )

inline

Provides all service definitions.

getUDN()

const char * tiny_dlna::DLNADeviceInfo::getUDN ( )

inline

Provide the udn uuid.

getUniversalProductCode()

const char * tiny_dlna::DLNADeviceInfo::getUniversalProductCode ( )

inline

isSubscriptionActive()

bool tiny_dlna::DLNADeviceInfo::isSubscriptionActive ( )

inline

loop()

virtual bool tiny_dlna::DLNADeviceInfo::loop ( )

inlinevirtual

loop processing

operator bool()

tiny_dlna::DLNADeviceInfo::operator bool ( )

inline

return true if active

print()

size_t tiny_dlna::DLNADeviceInfo::print ( Print &  out, void *  ref = nullptr  )

inline

renders the device xml into the provided Print output.

Parameters

out	Print target
ref	optional context pointer (passed through to callbacks)

printDevice()

size_t tiny_dlna::DLNADeviceInfo::printDevice ( Print &  out, void *  ref  )

inlineprotected

printIconDlnaInfo()

size_t tiny_dlna::DLNADeviceInfo::printIconDlnaInfo ( Print &  out, Icon *  icon  )

inlineprotected

printIconList()

size_t tiny_dlna::DLNADeviceInfo::printIconList ( Print &  out, void *  ref  )

inlineprotected

printRoot()

size_t tiny_dlna::DLNADeviceInfo::printRoot ( Print &  out, void *  ref  )

inlineprotected

printService()

size_t tiny_dlna::DLNADeviceInfo::printService ( Print &  out, void *  srv  )

inlineprotected

printServiceList()

size_t tiny_dlna::DLNADeviceInfo::printServiceList ( Print &  out, void *  ref  )

inlineprotected

printSpecVersion()

size_t tiny_dlna::DLNADeviceInfo::printSpecVersion ( Print &  out, void *  ref  )

inlineprotected

setActive()

void tiny_dlna::DLNADeviceInfo::setActive ( bool  flag )

inline

Sets the server to inactive.

setBaseURL() [1/2]

void tiny_dlna::DLNADeviceInfo::setBaseURL ( const char *  url )

inline

Defines the base url.

setBaseURL() [2/2]

void tiny_dlna::DLNADeviceInfo::setBaseURL ( IPAddress  ip, int  port, const char *  path = nullptr  )

inline

Defines the base URL.

setDeviceType()

void tiny_dlna::DLNADeviceInfo::setDeviceType ( const char *  st )

inline

setFriendlyName()

void tiny_dlna::DLNADeviceInfo::setFriendlyName ( const char *  name )

inline

setIPAddress()

void tiny_dlna::DLNADeviceInfo::setIPAddress ( IPAddress  address )

inline

Defines the local IP address.

setManufacturer()

void tiny_dlna::DLNADeviceInfo::setManufacturer ( const char *  man )

inline

setManufacturerURL()

void tiny_dlna::DLNADeviceInfo::setManufacturerURL ( const char *  url )

inline

setModelDescription()

void tiny_dlna::DLNADeviceInfo::setModelDescription ( const char *  descr )

inline

setModelName()

void tiny_dlna::DLNADeviceInfo::setModelName ( const char *  name )

inline

setModelNumber()

void tiny_dlna::DLNADeviceInfo::setModelNumber ( const char *  number )

inline

setNS()

void tiny_dlna::DLNADeviceInfo::setNS ( const char *  ns )

inline

setSerialNumber()

void tiny_dlna::DLNADeviceInfo::setSerialNumber ( const char *  sn )

inline

setSubscriptionActive()

void tiny_dlna::DLNADeviceInfo::setSubscriptionActive ( bool  flag )

inline

setUDN()

void tiny_dlna::DLNADeviceInfo::setUDN ( const char *  id )

inline

Define the udn uuid.

setUniversalProductCode()

void tiny_dlna::DLNADeviceInfo::setUniversalProductCode ( const char *  upc )

inline

setupServices()

virtual void tiny_dlna::DLNADeviceInfo::setupServices ( IHttpServer &  server, IUDPService &  udp  )

inlineprotectedvirtual

to be implemented by subclasses

Friends And Related Function Documentation

DLNAControlPoint

friend class DLNAControlPoint

friend

DLNADevice

template<typename >

friend class DLNADevice

friend

XMLDeviceParser

friend class XMLDeviceParser

friend

Member Data Documentation

base_url

Str tiny_dlna::DLNADeviceInfo::base_url = "http://localhost:9876/dlna"

protected

device_type

Str tiny_dlna::DLNADeviceInfo::device_type

protected

device_url

Url tiny_dlna::DLNADeviceInfo::device_url

protected

friendly_name

Str tiny_dlna::DLNADeviceInfo::friendly_name

protected

icon

Icon tiny_dlna::DLNADeviceInfo::icon

protected

icons

Vector<Icon> tiny_dlna::DLNADeviceInfo::icons

protected

is_active

bool tiny_dlna::DLNADeviceInfo::is_active = false

protected

is_subcription_active

bool tiny_dlna::DLNADeviceInfo::is_subcription_active = false

protected

localhost

IPAddress tiny_dlna::DLNADeviceInfo::localhost

protected

manufacturer

Str tiny_dlna::DLNADeviceInfo::manufacturer

protected

manufacturer_url

Str tiny_dlna::DLNADeviceInfo::manufacturer_url

protected

model_description

Str tiny_dlna::DLNADeviceInfo::model_description

protected

model_name

Str tiny_dlna::DLNADeviceInfo::model_name

protected

model_number

Str tiny_dlna::DLNADeviceInfo::model_number

protected

model_url

Str tiny_dlna::DLNADeviceInfo::model_url

protected

ns

Str tiny_dlna::DLNADeviceInfo::ns = "xmlns=\"urn:schemas-upnp-org:device-1-0\""

protected

serial_number

Str tiny_dlna::DLNADeviceInfo::serial_number

protected

services

Vector<DLNAServiceInfo> tiny_dlna::DLNADeviceInfo::services

protected

udn

Str tiny_dlna::DLNADeviceInfo::udn = "uuid:09349455-2941-4cf7-9847-0dd5ab210e97"

protected

universal_product_code

Str tiny_dlna::DLNADeviceInfo::universal_product_code

protected

url_str

Str tiny_dlna::DLNADeviceInfo::url_str

protected

version_major

int tiny_dlna::DLNADeviceInfo::version_major = 1

protected

version_minor

int tiny_dlna::DLNADeviceInfo::version_minor = 0

protected

---

The documentation for this class was generated from the following file:

• src/dlna/DLNADeviceInfo.h
