tiny_dlna::ActionRequest Class Reference

Represents a request to invoke a remote DLNA service action. More...

#include <Action.h>

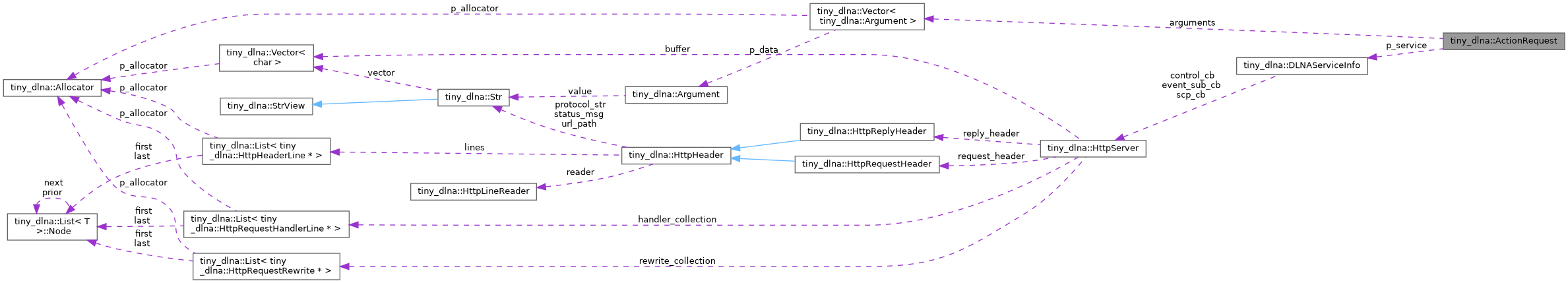

Collaboration diagram for tiny_dlna::ActionRequest:

Public Member Functions
	ActionRequest ()=default
	ActionRequest (DLNAServiceInfo &srv, const char *act)
void	addArgument (Argument arg)
void	addArgument (const char *name, const char *value)
	operator bool ()
const char *	getServiceType ()

Public Attributes
DLNAServiceInfo *	p_service = nullptr
const char *	action
Vector< Argument >	arguments {10}
int	result_count = 0

Protected Attributes
bool	is_valid = false

Detailed Description

Represents a request to invoke a remote DLNA service action.

An ActionRequest contains a pointer to the target DLNAServiceInfo, the action name to call and a list of input Argument items. It is used by the control point to serialize and post a SOAP request to the service's control URL.

Constructor & Destructor Documentation

ActionRequest() [1/2]

tiny_dlna::ActionRequest::ActionRequest ( )

default

ActionRequest() [2/2]

tiny_dlna::ActionRequest::ActionRequest ( DLNAServiceInfo &  srv, const char *  act  )

inline

Member Function Documentation

addArgument() [1/2]

void tiny_dlna::ActionRequest::addArgument ( Argument  arg )

inline

addArgument() [2/2]

void tiny_dlna::ActionRequest::addArgument ( const char *  name, const char *  value  )

inline

getServiceType()

const char * tiny_dlna::ActionRequest::getServiceType ( )

inline

operator bool()

tiny_dlna::ActionRequest::operator bool ( )

inline

Member Data Documentation

action

const char* tiny_dlna::ActionRequest::action

arguments

Vector<Argument> tiny_dlna::ActionRequest::arguments {10}

is_valid

bool tiny_dlna::ActionRequest::is_valid = false

protected

p_service

DLNAServiceInfo* tiny_dlna::ActionRequest::p_service = nullptr

result_count

int tiny_dlna::ActionRequest::result_count = 0

---

The documentation for this class was generated from the following file:

• src/dlna/service/Action.h
