Multi-tone FSK demodulator: PCM audio data is written to the decoder and the decoded bytes are written to the output. The input can be 8, 16 or 32 bit signed samples with any number of channels (only MFSKConfig::channel is evaluated). More...

#include <MFSKDecoder.h>

Inheritance diagram for tinymodem::MFSKDecoder:

[legend]

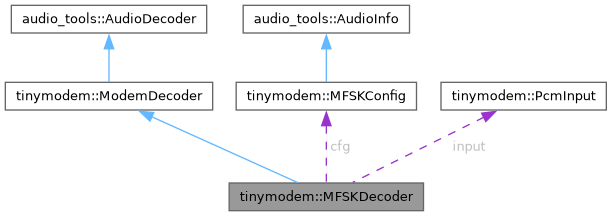

Collaboration diagram for tinymodem::MFSKDecoder:

[legend]

Public Member Functions
	MFSKDecoder ()=default
	MFSKDecoder (Print &out)
MFSKConfig	defaultConfig ()
	Provides a default configuration: mfsk16.
void	setAudioInfo (audio_tools::AudioInfo info) override
	Defines the format of the input audio data.
audio_tools::AudioInfo	audioInfo () override
bool	begin (MFSKConfig config)
	Starts the processing with the indicated configuration.
bool	begin () override
void	end () override
	Processes the remaining samples and reports the end of the carrier.
void	flush () override
	Processes all buffered samples (e.g. at the end of the input).
size_t	write (const uint8_t *data, size_t len) override
	Provide PCM data to the decoder.
bool	isCarrier () override
	true while a transmission is received
bool	isFinished () override
	true if the decoding was stopped (rx_one)
MFSKConfig &	config ()
	The configuration which was provided in begin().
	operator bool () override
Public Member Functions inherited from tinymodem::ModemDecoder
void	setStatusOutput (Print &out)
	Defines the output for the ### CARRIER / ### NOCARRIER messages.
void	setQuiet (bool quiet)
	Suppresses the status messages.
const char *	mime () override

Protected Types
enum class	State { SEARCH , PREAMBLE , DATA }

Protected Member Functions
void	tune (float new_scale)
void	setupDetector (audio_tools::GoertzelDetector &det, float freq)
void	startSearch ()
	Back to the search for the next preamble.
void	resetState ()
float	noise ()
	uniform random value in the range -0.5 to 0.5
void	addSample (float sample, bool add_noise)
void	discard (size_t n)
	Removes the processed samples at the start of the buffer.
float	magnitude (int tone, int start)
	Magnitude (amplitude) of the tone in the window starting at start.
float	magnitude (audio_tools::GoertzelDetector &det, int start)
	Magnitude (amplitude) of the detector's frequency in the window.
float	windowAmplitude (int start)
	Amplitude of a sine with the same energy as the window.
bool	step ()
	One processing step: returns false if more data is needed.
bool	searchStep ()
	Searches for the preamble at the start of the buffer.
bool	hasHighTone (float clock_error, float low)
bool	acquire (float coarse_error)
int	findTiming ()
bool	estimateClock (int offset)
bool	symbolStep ()
	Analyzes the next symbol.
void	preambleSymbol (int symbol, float amplitude, bool strong)
void	dataSymbol (int symbol, float amplitude, float second, bool strong, float symbol_nsamples)
void	outputSymbol (int symbol)
void	startOfCarrier ()
void	endOfCarrier ()
Protected Member Functions inherited from tinymodem::ModemDecoder
void	status (const char *fmt,...)

Protected Attributes
MFSKConfig	cfg
bool	is_active = false
bool	is_finished = false
PcmInput	input
audio_tools::Vector< audio_tools::GoertzelDetector >	detectors
audio_tools::Vector< audio_tools::GoertzelDetector >	search_detectors
audio_tools::Vector< float >	magnitudes
audio_tools::Vector< float >	samples
size_t	nvalid = 0
size_t	needed = 0
int	ntones = 16
int	bits_per_symbol = 4
float	nsamples = 0
int	window = 0
int	delta = 1
int	acquire_step = 1
int	hop = 1
uint32_t	noise_seed = 1
float	scale = 1.0f
	frequency scale which results from the different sample rates
float	drift = 0.0f
	learned timing drift in samples per symbol
bool	estimate_clock = true
	true if the clock of the sender is determined from the tones
State	state = State::SEARCH
float	pos = 0
float	track_amplitude = 0
int	preamble_count = 0
int	sync_stage = 0
bool	has_pending = false
int	pending_symbol = 0
uint32_t	bit_buffer = 0
int	bit_count = 0
unsigned	ndata = 0
unsigned	nsymbols = 0
float	confidence_total = 0
float	amplitude_total = 0
double	data_nsamples = 0
Protected Attributes inherited from tinymodem::ModemDecoder
Print *	p_status = nullptr
bool	is_quiet = false

Static Protected Attributes
static constexpr int	ACQUIRE_SYMBOLS = 4
	number of preamble symbols which are used for the timing acquisition
static constexpr int	MAX_PREAMBLE = 64
	max number of preamble symbols before we give up
static constexpr float	MAX_CLOCK_ERROR = 0.03f
	max difference of the sample rates of sender and receiver
static constexpr float	CLOCK_ERROR_STEP = 0.001f
static constexpr float	MIN_CLOCK_GAIN = 1.2f
	a different clock must provide this much more energy
static constexpr float	TIMING_GAIN = 0.25f
	gains of the timing loop
static constexpr float	DRIFT_GAIN = 0.05f
static constexpr float	LOST_LEVEL = 0.4f
	a symbol below this part of the tracked amplitude is lost
static constexpr float	NEW_SIGNAL_LEVEL = 4.0f
static constexpr float	CLEAR_RATIO = 1.5f
static constexpr float	HIGH_TONE_LEVEL = 0.25f
static constexpr float	MAX_CONFIDENCE = 100.0f
	the confidence of a symbol is limited to this value
static constexpr int	SEARCH_STEPS = 3
	the search checks the clock errors -3% to +3% in steps of 1%
static constexpr float	SEARCH_STEP = 0.01f

Detailed Description

Multi-tone FSK demodulator: PCM audio data is written to the decoder and the decoded bytes are written to the output. The input can be 8, 16 or 32 bit signed samples with any number of channels (only MFSKConfig::channel is evaluated).

The decoder searches for the preamble, determines the symbol timing from the alternating preamble tones and waits for the sync symbols. Then each symbol is analyzed with one Goertzel filter per tone. The timing is tracked with an early/late gate, so small differences of the sample rates are corrected. The end of a transmission is detected when the signal is lost.

Status messages (### CARRIER and ### NOCARRIER) are written to the status output.

Copyright: GPLv3

Member Enumeration Documentation

◆ State

enum class tinymodem::MFSKDecoder::State

strongprotected

Enumerator
SEARCH
PREAMBLE
DATA

Constructor & Destructor Documentation

◆ MFSKDecoder() [1/2]

tinymodem::MFSKDecoder::MFSKDecoder ( )

default

◆ MFSKDecoder() [2/2]

tinymodem::MFSKDecoder::MFSKDecoder ( Print & out )

inline

Member Function Documentation

◆ acquire()

bool tinymodem::MFSKDecoder::acquire ( float coarse_error )

inlineprotected

Determines the symbol timing and the clock of the sender from the alternating preamble tones: the coarse clock error is known from the search

◆ addSample()

void tinymodem::MFSKDecoder::addSample	(	float	sample,
		bool	add_noise )

inlineprotected

◆ audioInfo()

audio_tools::AudioInfo tinymodem::MFSKDecoder::audioInfo ( )

inlineoverride

◆ begin() [1/2]

bool tinymodem::MFSKDecoder::begin ( )

inlineoverride

◆ begin() [2/2]

bool tinymodem::MFSKDecoder::begin ( MFSKConfig config )

inline

Starts the processing with the indicated configuration.

◆ config()

MFSKConfig & tinymodem::MFSKDecoder::config ( )

inline

The configuration which was provided in begin().

◆ dataSymbol()

void tinymodem::MFSKDecoder::dataSymbol	(	int	symbol,
		float	amplitude,
		float	second,
		bool	strong,
		float	symbol_nsamples )

inlineprotected

◆ defaultConfig()

MFSKConfig tinymodem::MFSKDecoder::defaultConfig ( )

inline

Provides a default configuration: mfsk16.

◆ discard()

void tinymodem::MFSKDecoder::discard ( size_t n )

inlineprotected

Removes the processed samples at the start of the buffer.

◆ end()

void tinymodem::MFSKDecoder::end ( )

inlineoverride

Processes the remaining samples and reports the end of the carrier.

◆ endOfCarrier()

void tinymodem::MFSKDecoder::endOfCarrier ( )

inlineprotected

◆ estimateClock()

bool tinymodem::MFSKDecoder::estimateClock ( int offset )

inlineprotected

Determines the exact frequency scale from the highest preamble tone and adapts the receiver to it: returns true if the receiver was retuned

◆ findTiming()

int tinymodem::MFSKDecoder::findTiming ( )

inlineprotected

Finds the offset where the preamble tones are best separated: returns -1 if there is no signal

◆ flush()

void tinymodem::MFSKDecoder::flush ( )

inlineoverridevirtual

Processes all buffered samples (e.g. at the end of the input).

Implements tinymodem::ModemDecoder.

◆ hasHighTone()

bool tinymodem::MFSKDecoder::hasHighTone	(	float	clock_error,
		float	low )

inlineprotected

Quick check before the (expensive) acquisition: the preamble alternates the lowest and the highest tone, so the highest tone must be present in one of the next symbols. This rejects a steady tone (e.g. a carrier at the lowest tone), which would otherwise start an acquisition at each step.

◆ isCarrier()

bool tinymodem::MFSKDecoder::isCarrier ( )

inlineoverridevirtual

true while a transmission is received

Implements tinymodem::ModemDecoder.

◆ isFinished()

bool tinymodem::MFSKDecoder::isFinished ( )

inlineoverridevirtual

true if the decoding was stopped (rx_one)

Implements tinymodem::ModemDecoder.

◆ magnitude() [1/2]

float tinymodem::MFSKDecoder::magnitude	(	audio_tools::GoertzelDetector &	det,
		int	start )

inlineprotected

Magnitude (amplitude) of the detector's frequency in the window.

◆ magnitude() [2/2]

float tinymodem::MFSKDecoder::magnitude	(	int	tone,
		int	start )

inlineprotected

Magnitude (amplitude) of the tone in the window starting at start.

◆ noise()

float tinymodem::MFSKDecoder::noise ( )

inlineprotected

uniform random value in the range -0.5 to 0.5

◆ operator bool()

tinymodem::MFSKDecoder::operator bool ( )

inlineoverride

◆ outputSymbol()

void tinymodem::MFSKDecoder::outputSymbol ( int symbol )

inlineprotected

◆ preambleSymbol()

void tinymodem::MFSKDecoder::preambleSymbol	(	int	symbol,
		float	amplitude,
		bool	strong )

inlineprotected

◆ resetState()

void tinymodem::MFSKDecoder::resetState ( )

inlineprotected

◆ searchStep()

bool tinymodem::MFSKDecoder::searchStep ( )

inlineprotected

Searches for the preamble at the start of the buffer.

◆ setAudioInfo()

void tinymodem::MFSKDecoder::setAudioInfo ( audio_tools::AudioInfo info )

inlineoverride

Defines the format of the input audio data.

◆ setupDetector()

void tinymodem::MFSKDecoder::setupDetector	(	audio_tools::GoertzelDetector &	det,
		float	freq )

inlineprotected

◆ startOfCarrier()

void tinymodem::MFSKDecoder::startOfCarrier ( )

inlineprotected

◆ startSearch()

void tinymodem::MFSKDecoder::startSearch ( )

inlineprotected

Back to the search for the next preamble.

◆ step()

bool tinymodem::MFSKDecoder::step ( )

inlineprotected

One processing step: returns false if more data is needed.

◆ symbolStep()

bool tinymodem::MFSKDecoder::symbolStep ( )

inlineprotected

Analyzes the next symbol.

◆ tune()

void tinymodem::MFSKDecoder::tune ( float new_scale )

inlineprotected

Adapts the tones and the symbol length to the clock of the sender: a sender with a faster sample rate results in lower frequencies (scale < 1.0) and longer symbols.

◆ windowAmplitude()

float tinymodem::MFSKDecoder::windowAmplitude ( int start )

inlineprotected

Amplitude of a sine with the same energy as the window.

◆ write()

size_t tinymodem::MFSKDecoder::write	(	const uint8_t *	data,
		size_t	len )

inlineoverride

Provide PCM data to the decoder.

Member Data Documentation

◆ acquire_step

int tinymodem::MFSKDecoder::acquire_step = 1

protected

◆ ACQUIRE_SYMBOLS

int tinymodem::MFSKDecoder::ACQUIRE_SYMBOLS = 4

staticconstexprprotected

number of preamble symbols which are used for the timing acquisition

◆ amplitude_total

float tinymodem::MFSKDecoder::amplitude_total = 0

protected

◆ bit_buffer

uint32_t tinymodem::MFSKDecoder::bit_buffer = 0

protected

◆ bit_count

int tinymodem::MFSKDecoder::bit_count = 0

protected

◆ bits_per_symbol

int tinymodem::MFSKDecoder::bits_per_symbol = 4

protected

◆ cfg

MFSKConfig tinymodem::MFSKDecoder::cfg

protected

◆ CLEAR_RATIO

float tinymodem::MFSKDecoder::CLEAR_RATIO = 1.5f

staticconstexprprotected

the tone of a preamble or sync symbol must be this much stronger than any other tone

◆ CLOCK_ERROR_STEP

float tinymodem::MFSKDecoder::CLOCK_ERROR_STEP = 0.001f

staticconstexprprotected

◆ confidence_total

float tinymodem::MFSKDecoder::confidence_total = 0

protected

◆ data_nsamples

double tinymodem::MFSKDecoder::data_nsamples = 0

protected

◆ delta

int tinymodem::MFSKDecoder::delta = 1

protected

◆ detectors

audio_tools::Vector<audio_tools::GoertzelDetector> tinymodem::MFSKDecoder::detectors

protected

◆ drift

float tinymodem::MFSKDecoder::drift = 0.0f

protected

learned timing drift in samples per symbol

◆ DRIFT_GAIN

float tinymodem::MFSKDecoder::DRIFT_GAIN = 0.05f

staticconstexprprotected

◆ estimate_clock

bool tinymodem::MFSKDecoder::estimate_clock = true

protected

true if the clock of the sender is determined from the tones

◆ has_pending

bool tinymodem::MFSKDecoder::has_pending = false

protected

◆ HIGH_TONE_LEVEL

float tinymodem::MFSKDecoder::HIGH_TONE_LEVEL = 0.25f

staticconstexprprotected

the highest preamble tone must have this part of the lowest tone's amplitude (a window may only partly overlap a symbol)

◆ hop

int tinymodem::MFSKDecoder::hop = 1

protected

◆ input

PcmInput tinymodem::MFSKDecoder::input

protected

◆ is_active

bool tinymodem::MFSKDecoder::is_active = false

protected

◆ is_finished

bool tinymodem::MFSKDecoder::is_finished = false

protected

◆ LOST_LEVEL

float tinymodem::MFSKDecoder::LOST_LEVEL = 0.4f

staticconstexprprotected

a symbol below this part of the tracked amplitude is lost

◆ magnitudes

audio_tools::Vector<float> tinymodem::MFSKDecoder::magnitudes

protected

◆ MAX_CLOCK_ERROR

float tinymodem::MFSKDecoder::MAX_CLOCK_ERROR = 0.03f

staticconstexprprotected

max difference of the sample rates of sender and receiver

◆ MAX_CONFIDENCE

float tinymodem::MFSKDecoder::MAX_CONFIDENCE = 100.0f

staticconstexprprotected

the confidence of a symbol is limited to this value

◆ MAX_PREAMBLE

int tinymodem::MFSKDecoder::MAX_PREAMBLE = 64

staticconstexprprotected

max number of preamble symbols before we give up

◆ MIN_CLOCK_GAIN

float tinymodem::MFSKDecoder::MIN_CLOCK_GAIN = 1.2f

staticconstexprprotected

a different clock must provide this much more energy

◆ ndata

unsigned tinymodem::MFSKDecoder::ndata = 0

protected

◆ needed

size_t tinymodem::MFSKDecoder::needed = 0

protected

◆ NEW_SIGNAL_LEVEL

float tinymodem::MFSKDecoder::NEW_SIGNAL_LEVEL = 4.0f

staticconstexprprotected

a preamble symbol above this multiple of the tracked amplitude starts a new search

◆ noise_seed

uint32_t tinymodem::MFSKDecoder::noise_seed = 1

protected

◆ nsamples

float tinymodem::MFSKDecoder::nsamples = 0

protected

◆ nsymbols

unsigned tinymodem::MFSKDecoder::nsymbols = 0

protected

◆ ntones

int tinymodem::MFSKDecoder::ntones = 16

protected

◆ nvalid

size_t tinymodem::MFSKDecoder::nvalid = 0

protected

◆ pending_symbol

int tinymodem::MFSKDecoder::pending_symbol = 0

protected

◆ pos

float tinymodem::MFSKDecoder::pos = 0

protected

◆ preamble_count

int tinymodem::MFSKDecoder::preamble_count = 0

protected

◆ samples

audio_tools::Vector<float> tinymodem::MFSKDecoder::samples

protected

◆ scale

float tinymodem::MFSKDecoder::scale = 1.0f

protected

frequency scale which results from the different sample rates

◆ search_detectors

audio_tools::Vector<audio_tools::GoertzelDetector> tinymodem::MFSKDecoder::search_detectors

protected

◆ SEARCH_STEP

float tinymodem::MFSKDecoder::SEARCH_STEP = 0.01f

staticconstexprprotected

◆ SEARCH_STEPS

int tinymodem::MFSKDecoder::SEARCH_STEPS = 3

staticconstexprprotected

the search checks the clock errors -3% to +3% in steps of 1%

◆ state

State tinymodem::MFSKDecoder::state = State::SEARCH

protected

◆ sync_stage

int tinymodem::MFSKDecoder::sync_stage = 0

protected

◆ TIMING_GAIN

float tinymodem::MFSKDecoder::TIMING_GAIN = 0.25f

staticconstexprprotected

gains of the timing loop

◆ track_amplitude

float tinymodem::MFSKDecoder::track_amplitude = 0

protected

◆ window

int tinymodem::MFSKDecoder::window = 0

protected

The documentation for this class was generated from the following file:

src/modem/MFSKDecoder.h

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ State

Constructor & Destructor Documentation

◆ MFSKDecoder() [1/2]

◆ MFSKDecoder() [2/2]

Member Function Documentation

◆ acquire()

◆ addSample()

◆ audioInfo()

◆ begin() [1/2]

◆ begin() [2/2]

◆ config()

◆ dataSymbol()

◆ defaultConfig()

◆ discard()

◆ end()

◆ endOfCarrier()

◆ estimateClock()

◆ findTiming()

◆ flush()

◆ hasHighTone()

◆ isCarrier()

◆ isFinished()

◆ magnitude() [1/2]

◆ magnitude() [2/2]

◆ noise()

◆ operator bool()

◆ outputSymbol()

◆ preambleSymbol()

◆ resetState()

◆ searchStep()

◆ setAudioInfo()

◆ setupDetector()

◆ startOfCarrier()

◆ startSearch()

◆ step()

◆ symbolStep()

◆ tune()

◆ windowAmplitude()

◆ write()

Member Data Documentation

◆ acquire_step

◆ ACQUIRE_SYMBOLS

◆ amplitude_total

◆ bit_buffer

◆ bit_count

◆ bits_per_symbol

◆ cfg

◆ CLEAR_RATIO

◆ CLOCK_ERROR_STEP

◆ confidence_total

◆ data_nsamples

◆ delta

◆ detectors

◆ drift

◆ DRIFT_GAIN

◆ estimate_clock

◆ has_pending

◆ HIGH_TONE_LEVEL

◆ hop

◆ input

◆ is_active

◆ is_finished

◆ LOST_LEVEL

◆ magnitudes

◆ MAX_CLOCK_ERROR

◆ MAX_CONFIDENCE

◆ MAX_PREAMBLE

◆ MIN_CLOCK_GAIN

◆ ndata

◆ needed

◆ NEW_SIGNAL_LEVEL

◆ noise_seed

◆ nsamples
