ggwave compatible demodulator: the PCM audio data is written to the decoder and the payload of the received messages is written to the output. The input can be 8, 16 or 32 bit signed samples with any number of channels (only GGWaveConfig::channel is evaluated). More...

#include <GGWaveDecoder.h>

Inheritance diagram for tinymodem::GGWaveDecoder:

[legend]

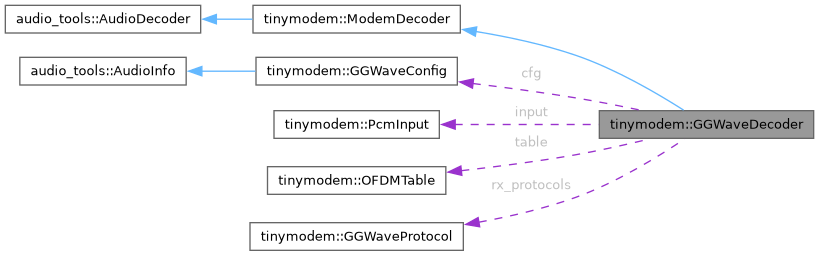

Collaboration diagram for tinymodem::GGWaveDecoder:

[legend]

Classes
struct	Candidate
	decoder for one protocol and timing offset More...

Public Member Functions
	GGWaveDecoder ()=default
	GGWaveDecoder (Print &out)
GGWaveConfig	defaultConfig ()
	Provides a default configuration: ggwave-fast.
void	setAudioInfo (audio_tools::AudioInfo info) override
	Defines the format of the input audio data.
audio_tools::AudioInfo	audioInfo () override
bool	begin (GGWaveConfig config)
	Starts the processing with the indicated configuration.
bool	begin () override
void	end () override
	Processes the remaining samples.
void	flush () override
	Processes the remaining samples (e.g. at the end of the input).
size_t	write (const uint8_t *data, size_t len) override
	Provide PCM data to the decoder.
bool	isCarrier () override
	true while a message is received
bool	isFinished () override
	true if the decoding was stopped (rx_one)
size_t	messageCount ()
	Number of received messages.
GGWaveConfig &	config ()
	The configuration which was provided in begin().
	operator bool () override
Public Member Functions inherited from tinymodem::ModemDecoder
void	setStatusOutput (Print &out)
	Defines the output for the ### CARRIER / ### NOCARRIER messages.
void	setQuiet (bool quiet)
	Suppresses the status messages.
const char *	mime () override

Protected Member Functions
void	resetState ()
void	clearCandidates ()
float	noise ()
	uniform random value in the range -0.5 to 0.5
void	addSample (float x, bool add_noise)
float *	ringRe (uint32_t block)
float *	ringIm (uint32_t block)
float *	ringPower (uint32_t block)
void	endBlock ()
float	markerScore (const float *power, int n)
void	trackStartMarker (bool detected)
void	startCandidates (uint32_t data_start)
void	clearAccumulator (Candidate &c)
void	processCandidates (uint32_t t)
	Provides the blocks up to t to all candidates.
void	processBlock (Candidate &c, uint32_t t)
void	endSymbol (Candidate &c)
void	kill (Candidate &c)
void	failed ()
void	accept (Candidate &c)
Protected Member Functions inherited from tinymodem::ModemDecoder
void	status (const char *fmt,...)

Protected Attributes
GGWaveConfig	cfg
bool	is_active = false
bool	is_finished = false
PcmInput	input
OFDMTable	table
uint32_t	noise_seed = 1
size_t	messages = 0
int	frame_size = 1024
int	block_size = 256
int	freq_start = 40
int	data_bins = 96
int	nbins = 96
GGWaveProtocol	rx_protocols [3]
int	nprotocols = 0
audio_tools::Vector< int >	table_idx
audio_tools::Vector< float >	block_re
audio_tools::Vector< float >	block_im
int	sample_pos = 0
audio_tools::Vector< float >	ring_re
audio_tools::Vector< float >	ring_im
audio_tools::Vector< float >	ring_power
float	scores [SCORE_RING]
float	detect_score = 8
uint32_t	block_no = 0
bool	run_active = false
uint32_t	run_first = 0
int	run_detections = 0
int	run_misses = 0
audio_tools::Vector< Candidate >	candidates
int	nalive = 0
Protected Attributes inherited from tinymodem::ModemDecoder
Print *	p_status = nullptr
bool	is_quiet = false

Static Protected Attributes
static constexpr int	RING = 24
	number of blocks of the history of the window power
static constexpr int	SCORE_RING = 128
	number of blocks of the history of the marker score
static constexpr int	WINDOW = 4
	number of blocks of the marker detection window (one frame)
static constexpr int	BLOCKS = 4
	blocks per frame
static constexpr int	NOFFSETS = 3
	timing offsets of the candidates: -1, 0, +1 block
static constexpr int	MAX_MISSES = 8
	the marker is lost after this number of blocks without detection
static constexpr int	MIN_DETECTIONS = 24
	a marker must be detected in this number of blocks (of 64)
static constexpr int	MARKER_WINDOWS
	number of windows which are completely inside a marker
static constexpr int	MAX_ENCODED

Detailed Description

ggwave compatible demodulator: the PCM audio data is written to the decoder and the payload of the received messages is written to the output. The input can be 8, 16 or 32 bit signed samples with any number of channels (only GGWaveConfig::channel is evaluated).

All ggwave tones are multiples of the frame rate, so they are periodic in a frame. The decoder calculates a DFT of the used bins for each quarter frame (block) and adds the blocks coherently. For each window of one frame a marker score is calculated: the sum of (on - off) / (on + off) of the 16 tone pairs of the marker, which is +16 for the start marker, -16 for the end marker and about 0 for noise and data. When the start marker was detected, the position with the highest sum of the scores over the length of the marker provides the start of the data. Then each symbol is decoded by adding the power of the windows inside the symbol (without the first and last block). The power is not added coherently over the whole symbol (like ggwave), so a different clock of the sender is tolerated. This is done in parallel for the normal, fast and fastest variant (rx_any_speed) and for the timing offsets -1, 0 and +1 block. The first candidate with a valid Reed-Solomon code and the end marker at the expected position wins.

Unlike ggwave, which records the audio of a whole message, the memory needed is small: about 27 KB for the audible protocols at 48000 Hz (23 KB at 24000 Hz).

Copyright: GPLv3

Constructor & Destructor Documentation

◆ GGWaveDecoder() [1/2]

tinymodem::GGWaveDecoder::GGWaveDecoder ( )

default

◆ GGWaveDecoder() [2/2]

tinymodem::GGWaveDecoder::GGWaveDecoder ( Print & out )

inline

Member Function Documentation

◆ accept()

void tinymodem::GGWaveDecoder::accept ( Candidate & c )

inlineprotected

◆ addSample()

void tinymodem::GGWaveDecoder::addSample	(	float	x,
		bool	add_noise )

inlineprotected

◆ audioInfo()

audio_tools::AudioInfo tinymodem::GGWaveDecoder::audioInfo ( )

inlineoverride

◆ begin() [1/2]

bool tinymodem::GGWaveDecoder::begin ( )

inlineoverride

◆ begin() [2/2]

bool tinymodem::GGWaveDecoder::begin ( GGWaveConfig config )

inline

Starts the processing with the indicated configuration.

◆ clearAccumulator()

void tinymodem::GGWaveDecoder::clearAccumulator ( Candidate & c )

inlineprotected

◆ clearCandidates()

void tinymodem::GGWaveDecoder::clearCandidates ( )

inlineprotected

◆ config()

GGWaveConfig & tinymodem::GGWaveDecoder::config ( )

inline

The configuration which was provided in begin().

◆ defaultConfig()

GGWaveConfig tinymodem::GGWaveDecoder::defaultConfig ( )

inline

Provides a default configuration: ggwave-fast.

◆ end()

void tinymodem::GGWaveDecoder::end ( )

inlineoverride

Processes the remaining samples.

◆ endBlock()

void tinymodem::GGWaveDecoder::endBlock ( )

inlineprotected

◆ endSymbol()

void tinymodem::GGWaveDecoder::endSymbol ( Candidate & c )

inlineprotected

◆ failed()

void tinymodem::GGWaveDecoder::failed ( )

inlineprotected

◆ flush()

void tinymodem::GGWaveDecoder::flush ( )

inlineoverridevirtual

Processes the remaining samples (e.g. at the end of the input).

Implements tinymodem::ModemDecoder.

◆ isCarrier()

bool tinymodem::GGWaveDecoder::isCarrier ( )

inlineoverridevirtual

true while a message is received

Implements tinymodem::ModemDecoder.

◆ isFinished()

bool tinymodem::GGWaveDecoder::isFinished ( )

inlineoverridevirtual

true if the decoding was stopped (rx_one)

Implements tinymodem::ModemDecoder.

◆ kill()

void tinymodem::GGWaveDecoder::kill ( Candidate & c )

inlineprotected

◆ markerScore()

float tinymodem::GGWaveDecoder::markerScore	(	const float *	power,
		int	n )

inlineprotected

Score of the start marker (-score for the end marker): the start marker tone i uses bin 2i + i % 2, the end marker tone bin 2i + 1 - i % 2. Pairs which are 40 dB below the strongest bin are ignored: e.g. rounding errors next to the loud data tones.

◆ messageCount()

size_t tinymodem::GGWaveDecoder::messageCount ( )

inline

Number of received messages.

◆ noise()

float tinymodem::GGWaveDecoder::noise ( )

inlineprotected

uniform random value in the range -0.5 to 0.5

◆ operator bool()

tinymodem::GGWaveDecoder::operator bool ( )

inlineoverride

◆ processBlock()

void tinymodem::GGWaveDecoder::processBlock	(	Candidate &	c,
		uint32_t	t )

inlineprotected

◆ processCandidates()

void tinymodem::GGWaveDecoder::processCandidates ( uint32_t t )

inlineprotected

Provides the blocks up to t to all candidates.

◆ resetState()

void tinymodem::GGWaveDecoder::resetState ( )

inlineprotected

◆ ringIm()

float * tinymodem::GGWaveDecoder::ringIm ( uint32_t block )

inlineprotected

◆ ringPower()

float * tinymodem::GGWaveDecoder::ringPower ( uint32_t block )

inlineprotected

◆ ringRe()

float * tinymodem::GGWaveDecoder::ringRe ( uint32_t block )

inlineprotected

◆ setAudioInfo()

void tinymodem::GGWaveDecoder::setAudioInfo ( audio_tools::AudioInfo info )

inlineoverride

Defines the format of the input audio data.

◆ startCandidates()

void tinymodem::GGWaveDecoder::startCandidates ( uint32_t data_start )

inlineprotected

◆ trackStartMarker()

void tinymodem::GGWaveDecoder::trackStartMarker ( bool detected )

inlineprotected

◆ write()

size_t tinymodem::GGWaveDecoder::write	(	const uint8_t *	data,
		size_t	len )

inlineoverride

Provide PCM data to the decoder.

Member Data Documentation

◆ block_im

audio_tools::Vector<float> tinymodem::GGWaveDecoder::block_im

protected

◆ block_no

uint32_t tinymodem::GGWaveDecoder::block_no = 0

protected

◆ block_re

audio_tools::Vector<float> tinymodem::GGWaveDecoder::block_re

protected

◆ block_size

int tinymodem::GGWaveDecoder::block_size = 256

protected

◆ BLOCKS

int tinymodem::GGWaveDecoder::BLOCKS = 4

staticconstexprprotected

blocks per frame

◆ candidates

audio_tools::Vector<Candidate> tinymodem::GGWaveDecoder::candidates

protected

◆ cfg

GGWaveConfig tinymodem::GGWaveDecoder::cfg

protected

◆ data_bins

int tinymodem::GGWaveDecoder::data_bins = 96

protected

◆ detect_score

float tinymodem::GGWaveDecoder::detect_score = 8

protected

◆ frame_size

int tinymodem::GGWaveDecoder::frame_size = 1024

protected

◆ freq_start

int tinymodem::GGWaveDecoder::freq_start = 40

protected

◆ input

PcmInput tinymodem::GGWaveDecoder::input

protected

◆ is_active

bool tinymodem::GGWaveDecoder::is_active = false

protected

◆ is_finished

bool tinymodem::GGWaveDecoder::is_finished = false

protected

◆ MARKER_WINDOWS

int tinymodem::GGWaveDecoder::MARKER_WINDOWS

staticconstexprprotected

Initial value:

=

GGWaveConfig::MARKER_FRAMES * BLOCKS - (WINDOW - 1)

tinymodem::GGWaveDecoder::BLOCKS

static constexpr int BLOCKS

blocks per frame

Definition GGWaveDecoder.h:163

tinymodem::GGWaveDecoder::WINDOW

static constexpr int WINDOW

number of blocks of the marker detection window (one frame)

Definition GGWaveDecoder.h:161

tinymodem::GGWaveConfig::MARKER_FRAMES

static constexpr int MARKER_FRAMES

number of frames of the start and end marker

Definition GGWave.h:87

number of windows which are completely inside a marker

◆ MAX_ENCODED

int tinymodem::GGWaveDecoder::MAX_ENCODED

staticconstexprprotected

Initial value:

= GGWaveConfig::LENGTH_BYTES +
                                     GGWaveConfig::MAX_PAYLOAD +
                                     2 * (GGWaveConfig::MAX_PAYLOAD / 5) + 3

◆ MAX_MISSES

int tinymodem::GGWaveDecoder::MAX_MISSES = 8

staticconstexprprotected

the marker is lost after this number of blocks without detection

◆ messages

size_t tinymodem::GGWaveDecoder::messages = 0

protected

◆ MIN_DETECTIONS

int tinymodem::GGWaveDecoder::MIN_DETECTIONS = 24

staticconstexprprotected

a marker must be detected in this number of blocks (of 64)

◆ nalive

int tinymodem::GGWaveDecoder::nalive = 0

protected

◆ nbins

int tinymodem::GGWaveDecoder::nbins = 96

protected

◆ NOFFSETS

int tinymodem::GGWaveDecoder::NOFFSETS = 3

staticconstexprprotected

timing offsets of the candidates: -1, 0, +1 block

◆ noise_seed

uint32_t tinymodem::GGWaveDecoder::noise_seed = 1

protected

◆ nprotocols

int tinymodem::GGWaveDecoder::nprotocols = 0

protected

◆ RING

int tinymodem::GGWaveDecoder::RING = 24

staticconstexprprotected

number of blocks of the history of the window power

◆ ring_im

audio_tools::Vector<float> tinymodem::GGWaveDecoder::ring_im

protected

◆ ring_power

audio_tools::Vector<float> tinymodem::GGWaveDecoder::ring_power

protected

◆ ring_re

audio_tools::Vector<float> tinymodem::GGWaveDecoder::ring_re

protected

◆ run_active

bool tinymodem::GGWaveDecoder::run_active = false

protected

◆ run_detections

int tinymodem::GGWaveDecoder::run_detections = 0

protected

◆ run_first

uint32_t tinymodem::GGWaveDecoder::run_first = 0

protected

◆ run_misses

int tinymodem::GGWaveDecoder::run_misses = 0

protected

◆ rx_protocols

GGWaveProtocol tinymodem::GGWaveDecoder::rx_protocols[3]

protected

◆ sample_pos

int tinymodem::GGWaveDecoder::sample_pos = 0

protected

◆ SCORE_RING

int tinymodem::GGWaveDecoder::SCORE_RING = 128

staticconstexprprotected

number of blocks of the history of the marker score

◆ scores

float tinymodem::GGWaveDecoder::scores[SCORE_RING]

protected

◆ table

OFDMTable tinymodem::GGWaveDecoder::table

protected

◆ table_idx

audio_tools::Vector<int> tinymodem::GGWaveDecoder::table_idx

protected

◆ WINDOW

int tinymodem::GGWaveDecoder::WINDOW = 4

staticconstexprprotected

number of blocks of the marker detection window (one frame)

The documentation for this class was generated from the following file:

src/modem/GGWaveDecoder.h

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ GGWaveDecoder() [1/2]

◆ GGWaveDecoder() [2/2]

Member Function Documentation

◆ accept()

◆ addSample()

◆ audioInfo()

◆ begin() [1/2]

◆ begin() [2/2]

◆ clearAccumulator()

◆ clearCandidates()

◆ config()

◆ defaultConfig()

◆ end()

◆ endBlock()

◆ endSymbol()

◆ failed()

◆ flush()

◆ isCarrier()

◆ isFinished()

◆ kill()

◆ markerScore()

◆ messageCount()

◆ noise()

◆ operator bool()

◆ processBlock()

◆ processCandidates()

◆ resetState()

◆ ringIm()

◆ ringPower()

◆ ringRe()

◆ setAudioInfo()

◆ startCandidates()

◆ trackStartMarker()

◆ write()

Member Data Documentation

◆ block_im

◆ block_no

◆ block_re

◆ block_size

◆ BLOCKS

◆ candidates

◆ cfg

◆ data_bins

◆ detect_score

◆ frame_size

◆ freq_start

◆ input

◆ is_active

◆ is_finished

◆ MARKER_WINDOWS

◆ MAX_ENCODED

◆ MAX_MISSES

◆ messages

◆ MIN_DETECTIONS

◆ nalive

◆ nbins

◆ NOFFSETS

◆ noise_seed

◆ nprotocols

◆ RING

◆ ring_im

◆ ring_power

◆ ring_re

◆ run_active

◆ run_detections

◆ run_first

◆ run_misses

◆ rx_protocols

◆ sample_pos

◆ SCORE_RING

◆ scores

◆ table

◆ table_idx
