Driver for ST7789 8-bit parallel display controller, driven via RP2040's PIO/DMA (see DisplayDriverParallel8RP2040). More...

Inheritance diagram for ST7789Driver8080RP2040< RGB_T >:

[legend]

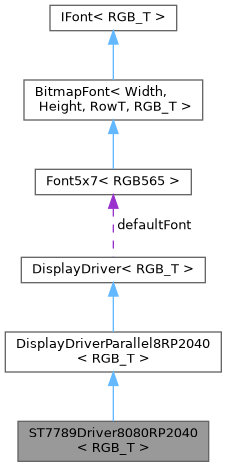

Collaboration diagram for ST7789Driver8080RP2040< RGB_T >:

[legend]

Public Member Functions
	ST7789Driver8080RP2040 (int8_t d0, int8_t wr, int8_t dc, int8_t cs=-1, int8_t rst=-1, size_t width=240, size_t height=320, float clockDiv=8.0f, PIO pio=pio0)

bool	begin () override

Public Member Functions inherited from DisplayDriverParallel8RP2040< RGB_T >
	DisplayDriverParallel8RP2040 (int8_t d0, int8_t wr, int8_t dc, int8_t cs=-1, int8_t rst=-1, size_t width=240, size_t height=320, float clockDiv=8.0f, PIO pio=pio0)

void	end () override

	~DisplayDriverParallel8RP2040 () override

size_t	width () const override

size_t	height () const override

bool	writeData (ISurface< RGB_T > &surface) override

bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y) override

Public Member Functions inherited from DisplayDriver< RGB_T >
virtual	~DisplayDriver ()=default

virtual bool	begin ()=0

virtual void	end ()

virtual bool	writeData (ISurface< RGB_T > &surface)=0

virtual bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y)=0

virtual void	setRotation (DisplayRotation rotation)

virtual size_t	width () const =0

virtual size_t	height () const =0

void	writeColor (size_t width, size_t height, RGB_T color)

Additional Inherited Members
Protected Member Functions inherited from DisplayDriverParallel8RP2040< RGB_T >
void	setColumnRowAddress (size_t x, size_t y, size_t w, size_t h)

bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h) override

bool	beginBus ()

void	setupPinsAndReset ()

void	writeCommand (uint8_t cmd)

void	writeData16 (uint16_t d1, uint16_t d2)

void	writeData8 (uint8_t data)

void	writeDataN (std::initializer_list< uint8_t > bytes)

virtual bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h)=0

Protected Attributes inherited from DisplayDriverParallel8RP2040< RGB_T >
int8_t	d0_

int8_t	wr_

int8_t	dc_

int8_t	cs_

int8_t	rst_

size_t	width_

size_t	height_

float	clockDiv_

PIO	pio_

uint	sm_ = 0

uint	offset_ = 0

int	dma_ = -1

bool	busInitialized_ = false

Protected Attributes inherited from DisplayDriver< RGB_T >
Font5x7< RGB_T >	defaultFont

Detailed Description

template<typename RGB_T = RGB565>
class tinygpu::ST7789Driver8080RP2040< RGB_T >

Driver for ST7789 8-bit parallel display controller, driven via RP2040's PIO/DMA (see DisplayDriverParallel8RP2040).

Constructor & Destructor Documentation

inline

bool begin ( )

inlineoverridevirtual

The documentation for this class was generated from the following file:
