ILI9341Driver8080RP2040< RGB_T > Class Template Reference

Driver for ILI9341 8-bit parallel display controller, driven via RP2040's PIO/DMA (see DisplayDriverParallel8RP2040). More...

#include <DisplayDriverParallel8RP2040.h>

Inheritance diagram for ILI9341Driver8080RP2040< RGB_T >:

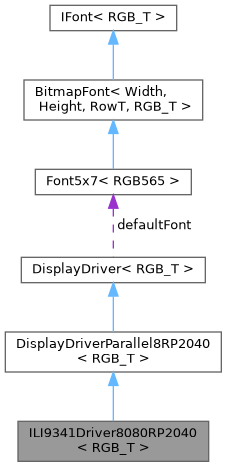

Collaboration diagram for ILI9341Driver8080RP2040< RGB_T >:

Public Types
using	Rotation = tinygpu::DisplayRotation

Public Member Functions
	ILI9341Driver8080RP2040 (int8_t d0, int8_t wr, int8_t dc, int8_t cs=-1, int8_t rst=-1, Rotation rotation=Rotation::kNone, float clockDiv=8.0f, PIO pio=pio0, size_t nativeWidth=240, size_t nativeHeight=320)
size_t	width () const override
size_t	height () const override
bool	begin () override
void	setRotation (Rotation rotation) override
Rotation	rotation () const
void	setInvertColor (bool invert)
Public Member Functions inherited from DisplayDriverParallel8RP2040< RGB_T >
	DisplayDriverParallel8RP2040 (int8_t d0, int8_t wr, int8_t dc, int8_t cs=-1, int8_t rst=-1, size_t width=240, size_t height=320, float clockDiv=8.0f, PIO pio=pio0)
void	end () override
	~DisplayDriverParallel8RP2040 () override
size_t	width () const override
size_t	height () const override
bool	writeData (ISurface< RGB_T > &surface) override
bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y) override
Public Member Functions inherited from DisplayDriver< RGB_T >
virtual	~DisplayDriver ()=default
virtual bool	begin ()=0
virtual void	end ()
virtual bool	writeData (ISurface< RGB_T > &surface)=0
virtual bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y)=0
virtual void	setRotation (DisplayRotation rotation)
virtual size_t	width () const =0
virtual size_t	height () const =0
void	writeColor (size_t width, size_t height, RGB_T color)

Static Protected Member Functions
static uint8_t	madctlForRotation (Rotation rotation)

Protected Attributes
Rotation	rotation_
size_t	nativeWidth_
size_t	nativeHeight_
bool	invertColor_ = false
Protected Attributes inherited from DisplayDriverParallel8RP2040< RGB_T >
int8_t	d0_
int8_t	wr_
int8_t	dc_
int8_t	cs_
int8_t	rst_
size_t	width_
size_t	height_
float	clockDiv_
PIO	pio_
uint	sm_ = 0
uint	offset_ = 0
int	dma_ = -1
bool	busInitialized_ = false
Protected Attributes inherited from DisplayDriver< RGB_T >
Font5x7< RGB_T >	defaultFont

Additional Inherited Members
Protected Member Functions inherited from DisplayDriverParallel8RP2040< RGB_T >
void	setColumnRowAddress (size_t x, size_t y, size_t w, size_t h)
bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h) override
bool	beginBus ()
void	setupPinsAndReset ()
void	writeCommand (uint8_t cmd)
void	writeData16 (uint16_t d1, uint16_t d2)
void	writeData8 (uint8_t data)
void	writeDataN (std::initializer_list< uint8_t > bytes)
virtual bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h)=0

Detailed Description

template<typename RGB_T = RGB565>
class tinygpu::ILI9341Driver8080RP2040< RGB_T >

Driver for ILI9341 8-bit parallel display controller, driven via RP2040's PIO/DMA (see DisplayDriverParallel8RP2040).

Same power/gamma/MADCTL init sequence as DisplayDriverSPI.h's ILI9341Driver (see that class's doc comment for provenance) - only the bus underneath differs.

Member Typedef Documentation

Rotation

using Rotation = tinygpu::DisplayRotation

Constructor & Destructor Documentation

ILI9341Driver8080RP2040()

ILI9341Driver8080RP2040 ( int8_t  d0, int8_t  wr, int8_t  dc, int8_t  cs = -1, int8_t  rst = -1, Rotation  rotation = Rotation::kNone, float  clockDiv = 8.0f, PIO  pio = pio0, size_t  nativeWidth = 240, size_t  nativeHeight = 320  )

inline

Parameters

nativeWidth/nativeHeight

the panel's physical resolution in its native (portrait, MV bit clear) orientation - 240x320 is the common ILI9341 module size and the default; pass your panel's real values if it differs.

Member Function Documentation

begin()

bool begin ( )

inlineoverridevirtual

Implements DisplayDriver< RGB_T >.

height()

size_t height ( ) const

inlineoverridevirtual

Reimplemented from DisplayDriverParallel8RP2040< RGB_T >.

madctlForRotation()

static uint8_t madctlForRotation ( Rotation  rotation )

inlinestaticprotected

rotation()

Rotation rotation ( ) const

inline

setInvertColor()

void setInvertColor ( bool  invert )

inline

See DisplayDriverSPI.h's ILI9341Driver::setInvertColor() - same panel quirk, same fix, just re-sent over this bus's begin() instead.

setRotation()

void setRotation ( Rotation  rotation )

inlineoverridevirtual

Changes the panel's rotation after begin(). Default no-op, for drivers with no such concept (e.g. a fixed-orientation panel, or a desktop/SDL backend) - concrete SPI drivers (ILI9341Driver, ILI9342Driver) override this to reprogram MADCTL.

Reimplemented from DisplayDriver< RGB_T >.

width()

size_t width ( ) const

inlineoverridevirtual

Current addressable panel width/height in pixels - for a driver that supports setRotation(), these reflect the current rotation (landscape vs portrait swaps them; see isLandscapeFamily()), not necessarily the panel's native/physical orientation. Callers that need to lay out content (e.g. OutputTinyGPU's scale_to_fit target, or clearScreen()'s band loop) should read these fresh rather than caching their own copy, so a setRotation() call is picked up automatically without needing separate bookkeeping.

Reimplemented from DisplayDriverParallel8RP2040< RGB_T >.

Member Data Documentation

invertColor_

bool invertColor_ = false

protected

nativeHeight_

size_t nativeHeight_

protected

nativeWidth_

size_t nativeWidth_

protected

rotation_

Rotation rotation_

protected

---

The documentation for this class was generated from the following file:

• src/TinyGPU/Drivers/DisplayDriverParallel8RP2040.h
