DisplayDriver<RGB565> wrapping the stm32f723-disco library's LCD class - the library owns the panel's init sequence and pixel output entirely (STM32Cube BSP driving the STM32F723's FMC peripheral), so this class is a thin adapter rather than a bus-level driver like DisplayDriverSPI/QSPI/DSI. Fixed 240x240 resolution - the panel is square, so width()/height() don't change with orientation. More...

#include <LCDBoardsSTM32F723Discovery.h>

Inheritance diagram for DisplayDriverSTM32F723Discovery:

[legend]

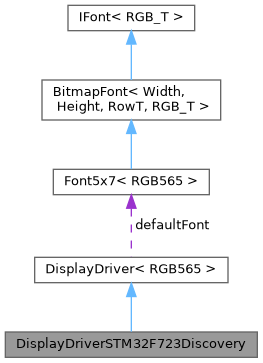

Collaboration diagram for DisplayDriverSTM32F723Discovery:

[legend]

Public Member Functions
	DisplayDriverSTM32F723Discovery (stm32f723::LcdOrientation orientation=stm32f723::LcdOrientation::Landscape)

bool	begin () override
	Resets and initializes the panel via the stm32f723-disco BSP wrapper.

size_t	width () const override

size_t	height () const override

bool	writeData (ISurface< RGB565 > &surface) override

bool	writeData (ISurface< RGB565 > &surface, size_t x, size_t y) override

stm32f723::LCD &	lcd ()

Public Member Functions inherited from DisplayDriver< RGB565 >
virtual	~DisplayDriver ()=default

virtual bool	begin ()=0

virtual void	end ()

virtual bool	writeData (ISurface< RGB565 > &surface)=0

virtual bool	writeData (ISurface< RGB565 > &surface, size_t x, size_t y)=0

virtual void	setRotation (DisplayRotation rotation)

virtual size_t	width () const=0

virtual size_t	height () const=0

void	writeColor (size_t width, size_t height, RGB565 color)

Protected Member Functions
bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h) override

virtual bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h)=0

Additional Inherited Members
Protected Attributes inherited from DisplayDriver< RGB565 >
Font5x7< RGB565 >	defaultFont

Detailed Description

DisplayDriver<RGB565> wrapping the stm32f723-disco library's LCD class - the library owns the panel's init sequence and pixel output entirely (STM32Cube BSP driving the STM32F723's FMC peripheral), so this class is a thin adapter rather than a bus-level driver like DisplayDriverSPI/QSPI/DSI. Fixed 240x240 resolution - the panel is square, so width()/height() don't change with orientation.

Byte order: LCD::drawRGBImage() expects the conventional (native) RGB565 bit layout - like DisplayDriverSDL's SDL texture upload, this is the opposite of TinyGPU's own stored (SPI-wire-swapped) byte order (see RGB565.h), so writeData() swaps into a scratch buffer before calling drawRGBImage() rather than mutating the surface.

Constructor & Destructor Documentation

◆ DisplayDriverSTM32F723Discovery()

DisplayDriverSTM32F723Discovery ( stm32f723::LcdOrientation orientation = stm32f723::LcdOrientation::Landscape )

inlineexplicit

Member Function Documentation

◆ begin()

bool begin ( )

inlineoverridevirtual

Resets and initializes the panel via the stm32f723-disco BSP wrapper.

Implements DisplayDriver< RGB565 >.

◆ height()

size_t height ( ) const

inlineoverridevirtual

Implements DisplayDriver< RGB565 >.

◆ lcd()

stm32f723::LCD & lcd ( )

inline

Direct access to the underlying stm32f723::LCD instance - e.g. for displayOn()/displayOff() or the library's own text/shape drawing, which this driver doesn't wrap.

◆ setAddressWindow()

bool setAddressWindow	(	size_t	x,
		size_t	y,
		size_t	w,
		size_t	h
	)

inlineoverrideprotectedvirtual

Implements DisplayDriver< RGB565 >.

◆ width()

size_t width ( ) const

inlineoverridevirtual

Current addressable panel width/height in pixels - for a driver that supports setRotation(), these reflect the current rotation (landscape vs portrait swaps them; see isLandscapeFamily()), not necessarily the panel's native/physical orientation. Callers that need to lay out content (e.g. OutputTinyGPU's scale_to_fit target, or clearScreen()'s band loop) should read these fresh rather than caching their own copy, so a setRotation() call is picked up automatically without needing separate bookkeeping.

Implements DisplayDriver< RGB565 >.
