Concrete touch-controller drivers (XPT2046, FT6236/FT6206, CST816S, GT911, and the controller-less TouchDriverBitBang) built on the Arduino SPIClass/TwoWire/pinMode/analogRead API - split out of TouchDriver.h so that including the platform-independent TouchDriver base class/calibration/coordinate-mapping code doesn't also pull in Arduino.h. Include this file explicitly to use any of these drivers. More...
Go to the source code of this file.
Classes | |
| class | TouchDriverXPT2046 |
| XPT2046 resistive touch controller. More... | |
| class | TouchDriverBitBang |
| Bit-banged 4-wire resistive touch panel driver. More... | |
| class | TouchDriverFT6236 |
| FT6236 / FT6336 capacitive touch controller. More... | |
| class | TouchDriverCST816S |
| CST816S capacitive touch controller. More... | |
| class | TouchDriverGT911 |
| GT911 capacitive touch controller. More... | |
Namespaces | |
| namespace | tinygpu |
Typedefs | |
| using | TouchDriverFT6206 = TouchDriverFT6236 |
| The FT6206 is a drop-in replacement for the FT6236, so we can alias it here. | |
Detailed Description
Concrete touch-controller drivers (XPT2046, FT6236/FT6206, CST816S, GT911, and the controller-less TouchDriverBitBang) built on the Arduino SPIClass/TwoWire/pinMode/analogRead API - split out of TouchDriver.h so that including the platform-independent TouchDriver base class/calibration/coordinate-mapping code doesn't also pull in Arduino.h. Include this file explicitly to use any of these drivers.

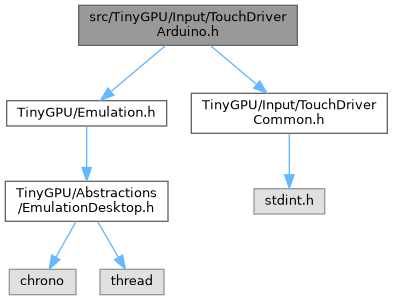

Pulls in Arduino.h/SPI.h/Wire.h via TinyGPU/Emulation.h, which falls back to a small platform-native emulation of that surface when no real Arduino core (e.g. arduino-esp32) is present - see that header for what is and isn't covered.
