Driver for the NXP SC16IS752 dual UART bridge over I2C or SPI. More...

#include <SC16IS752.h>

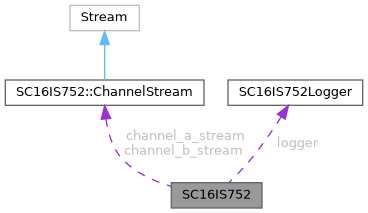

Collaboration diagram for SC16IS752:

[legend]

Classes
class	ChannelStream
	Per-channel `Stream` adapter for one SC16IS752 UART. More...

Public Types
enum	SC16IS752_Channel : uint8_t { SC16IS752_CHANNEL_A = 0x00 , SC16IS752_CHANNEL_B = 0x01 , SC16IS752_CHANNEL_BOTH = 0x00 }
	UART channel selector used by channel-specific APIs. More...

Public Member Functions
	SC16IS752 (TwoWire &wire, uint8_t addr=SC16IS750_I2C_ADDRESS_AD, uint32_t crystal_freq_hz=SC16IS750_CRYSTCAL_FREQ)
	Constructs an SC16IS752 instance using I2C transport.

	SC16IS752 (SPIClass &spi, uint8_t ss_pin, uint32_t crystal_freq_hz=SC16IS750_CRYSTCAL_FREQ)
	Constructs an SC16IS752 instance using SPI transport.

	SC16IS752 (const SC16IS752 &)=delete
	Prevent copying and moving of the driver instance.

SC16IS752 &	operator= (const SC16IS752 &)=delete
	Prevent copying and moving of the driver instance.

	SC16IS752 (SC16IS752 &&)=delete
	Prevent copying and moving of the driver instance.

SC16IS752 &	operator= (SC16IS752 &&)=delete
	Prevent copying and moving of the driver instance.

ChannelStream &	channelA ()
	Returns channel A stream adapter.

ChannelStream &	channelB ()
	Returns channel B stream adapter.

void	setLogger (SC16IS752Logger *log)
	Set logger for debug output.

void	setTimeout (uint32_t time_out)
	Sets read timeout in milliseconds.

void	end ()
	Gracefully closes both UART channels and resets the device.

Protected Member Functions
void	beginChannel (SC16IS752_Channel channel, uint32_t baudrate, uint32_t config=SC16IS752_DEFAULT_CONFIG)
	Initializes a specific UART channel with the given baud rate and serial configuration.

void	endChannel (SC16IS752_Channel channel)
	Gracefully closes a specific UART channel.

int	read (SC16IS752_Channel channel)
	Reads a byte from the specified channel.

size_t	write (SC16IS752_Channel channel, uint8_t val)
	Writes a byte to the specified channel.

int	available (SC16IS752_Channel channel)
	Returns number of bytes available to read from the channel.

uint8_t	linestate (SC16IS752_Channel channel)
	Returns line status register for the channel.

uint8_t	ping ()
	Verifies device communication (returns 1 if successful)

int	peek (SC16IS752_Channel channel)
	Reads a byte without removing it from the buffer.

void	flush (SC16IS752_Channel channel)
	Waits for transmission to complete on the channel.

uint8_t	interruptPendingTest (SC16IS752_Channel channel)
	Tests if an interrupt is pending on the channel.

int	interruptEventTest (SC16IS752_Channel channel)
	Returns the type of interrupt event for the channel.

void	setPinInterrupt (uint8_t io_int_ena)
	Configures GPIO pin interrupt settings.

void	enableRs485 (SC16IS752_Channel channel, bool invert_rts)

void	enableTransmit (SC16IS752_Channel channel, uint8_t tx_enable)
	Enables or disables transmission on the specified channel.

void	initializeDevice ()
	Initializes the SC16IS752 device state on an already configured bus.

uint8_t	gpioGetPortState (void)
	Returns the current state of all GPIO pins as a bitmask.

void	interruptControl (SC16IS752_Channel channel, uint8_t int_ena)
	Writes interrupt enable flags for the selected UART channel.

void	modemPin (uint8_t gpio)
	Selects whether upper IO pins operate as modem pins or GPIO pins.

void	gpioLatch (uint8_t latch)
	Enables or disables GPIO output latching behavior.

int16_t	setBaudrate (SC16IS752_Channel channel, uint32_t baudrate)
	Configures baud rate divisor and returns error in parts-per-thousand.

uint8_t	readRegister (SC16IS752_Channel channel, uint8_t reg_addr)
	Reads one register byte from the selected channel via I2C or SPI.

void	writeRegister (SC16IS752_Channel channel, uint8_t reg_addr, uint8_t val)
	Writes one register byte to the selected channel via I2C or SPI.

void	setLine (SC16IS752_Channel channel, uint8_t data_length, uint8_t parity_select, uint8_t stop_length)
	Configures line format by data bits, parity mode, and stop bits.

void	setLine (SC16IS752_Channel channel, uint32_t config)
	Configures data bits, parity, and stop bits from an Arduino SERIAL_* value.

void	pinMode (uint8_t pin, uint8_t io)
	Sets GPIO pin as input or output (OUTPUT or INPUT)

void	digitalWrite (uint8_t pin, uint8_t value)
	Sets GPIO pin output level (HIGH or LOW)

uint8_t	digitalRead (uint8_t pin)
	Reads GPIO pin level (returns 0 or 1)

void	gpioSetPinMode (uint8_t pin_number, uint8_t i_o)
	Sets one GPIO pin direction (`OUTPUT` or `INPUT`).

void	gpioSetPinState (uint8_t pin_number, uint8_t pin_state)
	Sets one GPIO output pin state (`HIGH` or `LOW`).

uint8_t	gpioGetPinState (uint8_t pin_number)
	Reads one GPIO pin state and returns 0 or 1.

void	gpioSetPortMode (uint8_t port_io)
	Sets direction of all GPIO pins using a bitmask.

void	gpioSetPortState (uint8_t port_state)
	Sets output state of all GPIO pins using a bitmask.

void	resetDevice ()
	Issues a software reset to the SC16IS752 device.

void	fifoEnable (SC16IS752_Channel channel, uint8_t fifo_enable)
	Enables or disables FIFO for the selected channel.

void	fifoReset (SC16IS752_Channel channel, uint8_t rx_fifo)
	Resets RX or TX FIFO for the selected channel.

void	fifoSetTriggerLevel (SC16IS752_Channel channel, uint8_t rx_fifo, uint8_t length)
	Sets RX or TX FIFO trigger level for interrupt generation.

uint8_t	fifoAvailableData (SC16IS752_Channel channel)
	Returns number of bytes currently available in RX FIFO.

uint8_t	fifoAvailableSpace (SC16IS752_Channel channel)
	Returns free space currently available in TX FIFO.

void	writeByte (SC16IS752_Channel channel, uint8_t val)
	Writes one byte to TX holding register when transmitter is ready.

int	readByte (SC16IS752_Channel channel)
	Reads one byte from RX holding register, or -1 when no data is available.

bool	decodeSerialConfig (uint32_t config, uint8_t data_length, uint8_t parity_select, uint8_t *stop_length)
	Decodes Arduino `SERIAL_*` format into data bits, parity, and stop bits.

Protected Attributes
bool	is_active = false

uint8_t	device_address_sspin

TwoWire *	wire_bus

SPIClass *	spi_bus

SPISettings	spi_settings {SC16IS752_DEFAULT_SPI_CLOCK, MSBFIRST, SPI_MODE0}

uint32_t	crystal_freq = SC16IS750_CRYSTCAL_FREQ

uint32_t	timeout

ChannelStream	channel_a_stream

ChannelStream	channel_b_stream

int	peek_buf [2]

uint8_t	peek_flag [2]

SC16IS752Logger *	logger = nullptr

Static Protected Attributes
static constexpr uint8_t	SC16IS750_REG_RHR
	Receive Holding Register.

static constexpr uint8_t	SC16IS750_REG_THR
	Transmit Holding Register.

static constexpr uint8_t	SC16IS750_REG_IER
	Interrupt Enable Register.

static constexpr uint8_t	SC16IS750_REG_FCR
	FIFO Control Register.

static constexpr uint8_t	SC16IS750_REG_IIR
	Interrupt Identification Register.

static constexpr uint8_t	SC16IS750_REG_LCR
	Line Control Register.

static constexpr uint8_t	SC16IS750_REG_MCR
	Modem Control Register.

static constexpr uint8_t	SC16IS750_REG_LSR = 0x05
	Line Status Register.

static constexpr uint8_t	SC16IS750_REG_MSR
	Modem Status Register.

static constexpr uint8_t	SC16IS750_REG_SPR = 0x07
	Scratchpad Register.

static constexpr uint8_t	SC16IS750_REG_TCR
	Transmission Control Register.

static constexpr uint8_t	SC16IS750_REG_TLR
	Trigger Level Register.

static constexpr uint8_t	SC16IS750_REG_TXLVL
	TX FIFO Level Register.

static constexpr uint8_t	SC16IS750_REG_RXLVL
	RX FIFO Level Register.

static constexpr uint8_t	SC16IS750_REG_IODIR
	GPIO Direction Register.

static constexpr uint8_t	SC16IS750_REG_IOSTATE
	GPIO State Register.

static constexpr uint8_t	SC16IS750_REG_IOINTENA
	GPIO Interrupt Enable Register.

static constexpr uint8_t	SC16IS750_REG_IOCONTROL
	GPIO/IO Control Register.

static constexpr uint8_t	SC16IS750_REG_EFCR
	Extra Features Control Register.

static constexpr uint8_t	SC16IS750_REG_DLL = 0x00
	Divisor Latch LSB.

static constexpr uint8_t	SC16IS750_REG_DLH = 0x01
	Divisor Latch MSB.

static constexpr uint8_t	SC16IS750_REG_EFR
	Enhanced Features Register.

static constexpr uint8_t	SC16IS750_REG_XON1
	XON1 flow-control character.

static constexpr uint8_t	SC16IS750_REG_XON2
	XON2 flow-control character.

static constexpr uint8_t	SC16IS750_REG_XOFF1
	XOFF1 flow-control character.

static constexpr uint8_t	SC16IS750_REG_XOFF2
	XOFF2 flow-control character.

static constexpr uint8_t	SC16IS750_INT_CTS
	CTS change interrupt enable bit.

static constexpr uint8_t	SC16IS750_INT_RTS
	RTS change interrupt enable bit.

static constexpr uint8_t	SC16IS750_INT_XOFF
	XOFF interrupt enable bit.

static constexpr uint8_t	SC16IS750_INT_SLEEP
	Sleep mode interrupt enable bit.

static constexpr uint8_t	SC16IS750_INT_MODEM
	Modem status interrupt enable bit.

static constexpr uint8_t	SC16IS750_INT_LINE
	Line status interrupt enable bit.

static constexpr uint8_t	SC16IS750_INT_THR
	TX holding register interrupt enable bit.

static constexpr uint8_t	SC16IS750_INT_RHR
	RX holding register interrupt enable bit.

static constexpr uint32_t	SC16IS750_CRYSTCAL_FREQ
	Default crystal frequency (Hz).

Friends
class	ChannelStream

Detailed Description

Driver for the NXP SC16IS752 dual UART bridge over I2C or SPI.

The SC16IS752 provides two independent UART channels (A and B) and optional GPIO/interrupt capabilities. This class wraps register-level access and exposes:

Channel-oriented UART APIs (read(), write(), available(), ...)
Per-channel Stream adapters via channelA() and channelB()
Optional RS485 and interrupt helper methods

Construction selects the transport layer:

SC16IS752(TwoWire&, address) for I2C
SC16IS752(SPIClass&, ssPin) for SPI

Typical usage:

SC16IS752 uart(Wire, SC16IS750_I2C_ADDRESS_AD);
uart.channelA().begin(9600);
uart.channelB().begin(115200);
uart.channelA().write('H');

Optionally, attach a logger with setLogger() to receive debug output.

Member Enumeration Documentation

◆ SC16IS752_Channel

enum SC16IS752::SC16IS752_Channel : uint8_t

UART channel selector used by channel-specific APIs.

Enumerator
SC16IS752_CHANNEL_A	UART channel A.
SC16IS752_CHANNEL_B	UART channel B.
SC16IS752_CHANNEL_BOTH	Broadcast for global/shared registers.

Member Function Documentation

◆ beginChannel()

void SC16IS752::beginChannel	(	SC16IS752_Channel	channel,
		uint32_t	baudrate,
		uint32_t	config = `SC16IS752_DEFAULT_CONFIG`
	)

inlineprotected

Initializes a specific UART channel with the given baud rate and serial configuration.

Parameters

channel	Target UART channel.
baudrate	UART baud rate.
config	Arduino-style serial format. Supported values are: `SERIAL_5N1` `SERIAL_6N1` `SERIAL_7N1` `SERIAL_8N1` (default) `SERIAL_5N2` `SERIAL_6N2` `SERIAL_7N2` `SERIAL_8N2` `SERIAL_5E1` `SERIAL_6E1` `SERIAL_7E1` `SERIAL_8E1` `SERIAL_5E2` `SERIAL_6E2` `SERIAL_7E2` `SERIAL_8E2` `SERIAL_5O1` `SERIAL_6O1` `SERIAL_7O1` `SERIAL_8O1` `SERIAL_5O2` `SERIAL_6O2` `SERIAL_7O2` `SERIAL_8O2`

◆ enableRs485()

void SC16IS752::enableRs485	(	SC16IS752_Channel	channel,
		bool	invert_rts
	)

inlineprotected

Enables RS485 mode on the specified channel

Parameters

invert_rts true to invert RTS signal, false for normal RTS signal

Member Data Documentation

◆ SC16IS750_CRYSTCAL_FREQ

constexpr uint32_t SC16IS752::SC16IS750_CRYSTCAL_FREQ

staticconstexprprotected

Initial value:

=

1843200UL

Default crystal frequency (Hz).

◆ SC16IS750_INT_CTS

constexpr uint8_t SC16IS752::SC16IS750_INT_CTS

staticconstexprprotected

Initial value:

=

0x80

CTS change interrupt enable bit.

◆ SC16IS750_INT_LINE

constexpr uint8_t SC16IS752::SC16IS750_INT_LINE

staticconstexprprotected

Initial value:

=

0x04

Line status interrupt enable bit.

◆ SC16IS750_INT_MODEM

constexpr uint8_t SC16IS752::SC16IS750_INT_MODEM

staticconstexprprotected

Initial value:

=

0x08

Modem status interrupt enable bit.

◆ SC16IS750_INT_RHR

constexpr uint8_t SC16IS752::SC16IS750_INT_RHR

staticconstexprprotected

Initial value:

=

0x01

RX holding register interrupt enable bit.

◆ SC16IS750_INT_RTS

constexpr uint8_t SC16IS752::SC16IS750_INT_RTS

staticconstexprprotected

Initial value:

=

0x40

RTS change interrupt enable bit.

◆ SC16IS750_INT_SLEEP

constexpr uint8_t SC16IS752::SC16IS750_INT_SLEEP

staticconstexprprotected

Initial value:

=

0x10

Sleep mode interrupt enable bit.

◆ SC16IS750_INT_THR

constexpr uint8_t SC16IS752::SC16IS750_INT_THR

staticconstexprprotected

Initial value:

=

0x02

TX holding register interrupt enable bit.

◆ SC16IS750_INT_XOFF

constexpr uint8_t SC16IS752::SC16IS750_INT_XOFF

staticconstexprprotected

Initial value:

=

0x20

XOFF interrupt enable bit.

◆ SC16IS750_REG_EFCR

constexpr uint8_t SC16IS752::SC16IS750_REG_EFCR

staticconstexprprotected

Initial value:

=

0x0F

Extra Features Control Register.

◆ SC16IS750_REG_EFR

constexpr uint8_t SC16IS752::SC16IS750_REG_EFR

staticconstexprprotected

Initial value:

=

0x02

Enhanced Features Register.

◆ SC16IS750_REG_FCR

constexpr uint8_t SC16IS752::SC16IS750_REG_FCR

staticconstexprprotected

Initial value:

=

0x02

FIFO Control Register.

◆ SC16IS750_REG_IER

constexpr uint8_t SC16IS752::SC16IS750_REG_IER

staticconstexprprotected

Initial value:

=

0x01

Interrupt Enable Register.

◆ SC16IS750_REG_IIR

constexpr uint8_t SC16IS752::SC16IS750_REG_IIR

staticconstexprprotected

Initial value:

=

0x02

Interrupt Identification Register.

◆ SC16IS750_REG_IOCONTROL

constexpr uint8_t SC16IS752::SC16IS750_REG_IOCONTROL

staticconstexprprotected

Initial value:

=

0x0E

GPIO/IO Control Register.

◆ SC16IS750_REG_IODIR

constexpr uint8_t SC16IS752::SC16IS750_REG_IODIR

staticconstexprprotected

Initial value:

=

0x0A

GPIO Direction Register.

◆ SC16IS750_REG_IOINTENA

constexpr uint8_t SC16IS752::SC16IS750_REG_IOINTENA

staticconstexprprotected

Initial value:

=

0x0C

GPIO Interrupt Enable Register.

◆ SC16IS750_REG_IOSTATE

constexpr uint8_t SC16IS752::SC16IS750_REG_IOSTATE

staticconstexprprotected

Initial value:

=

0x0B

GPIO State Register.

◆ SC16IS750_REG_LCR

constexpr uint8_t SC16IS752::SC16IS750_REG_LCR

staticconstexprprotected

Initial value:

=

0x03

Line Control Register.

◆ SC16IS750_REG_MCR

constexpr uint8_t SC16IS752::SC16IS750_REG_MCR

staticconstexprprotected

Initial value:

=

0x04

Modem Control Register.

◆ SC16IS750_REG_MSR

constexpr uint8_t SC16IS752::SC16IS750_REG_MSR

staticconstexprprotected

Initial value:

=

0x06

Modem Status Register.

◆ SC16IS750_REG_RHR

constexpr uint8_t SC16IS752::SC16IS750_REG_RHR

staticconstexprprotected

Initial value:

=

0x00

Receive Holding Register.

◆ SC16IS750_REG_RXLVL

constexpr uint8_t SC16IS752::SC16IS750_REG_RXLVL

staticconstexprprotected

Initial value:

=

0x09

RX FIFO Level Register.

◆ SC16IS750_REG_TCR

constexpr uint8_t SC16IS752::SC16IS750_REG_TCR

staticconstexprprotected

Initial value:

=

0x06

Transmission Control Register.

◆ SC16IS750_REG_THR

constexpr uint8_t SC16IS752::SC16IS750_REG_THR

staticconstexprprotected

Initial value:

=

0x00

Transmit Holding Register.

◆ SC16IS750_REG_TLR

constexpr uint8_t SC16IS752::SC16IS750_REG_TLR

staticconstexprprotected

Initial value:

=

0x07

Trigger Level Register.

◆ SC16IS750_REG_TXLVL

constexpr uint8_t SC16IS752::SC16IS750_REG_TXLVL

staticconstexprprotected

Initial value:

=

0x08

TX FIFO Level Register.

◆ SC16IS750_REG_XOFF1

constexpr uint8_t SC16IS752::SC16IS750_REG_XOFF1

staticconstexprprotected

Initial value:

=

0x06

XOFF1 flow-control character.

◆ SC16IS750_REG_XOFF2

constexpr uint8_t SC16IS752::SC16IS750_REG_XOFF2

staticconstexprprotected

Initial value:

=

0x07

XOFF2 flow-control character.

◆ SC16IS750_REG_XON1

constexpr uint8_t SC16IS752::SC16IS750_REG_XON1

staticconstexprprotected

Initial value:

=

0x04

XON1 flow-control character.

◆ SC16IS750_REG_XON2

constexpr uint8_t SC16IS752::SC16IS750_REG_XON2

staticconstexprprotected

Initial value:

=

0x05

XON2 flow-control character.

The documentation for this class was generated from the following file:

src/SC16IS752.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ SC16IS752_Channel

Member Function Documentation

◆ beginChannel()

◆ enableRs485()

Member Data Documentation

◆ SC16IS750_CRYSTCAL_FREQ

◆ SC16IS750_INT_CTS

◆ SC16IS750_INT_LINE

◆ SC16IS750_INT_MODEM

◆ SC16IS750_INT_RHR

◆ SC16IS750_INT_RTS

◆ SC16IS750_INT_SLEEP

◆ SC16IS750_INT_THR

◆ SC16IS750_INT_XOFF

◆ SC16IS750_REG_EFCR

◆ SC16IS750_REG_EFR

◆ SC16IS750_REG_FCR

◆ SC16IS750_REG_IER

◆ SC16IS750_REG_IIR

◆ SC16IS750_REG_IOCONTROL

◆ SC16IS750_REG_IODIR

◆ SC16IS750_REG_IOINTENA

◆ SC16IS750_REG_IOSTATE

◆ SC16IS750_REG_LCR

◆ SC16IS750_REG_MCR

◆ SC16IS750_REG_MSR

◆ SC16IS750_REG_RHR

◆ SC16IS750_REG_RXLVL

◆ SC16IS750_REG_TCR

◆ SC16IS750_REG_THR

◆ SC16IS750_REG_TLR

◆ SC16IS750_REG_TXLVL

◆ SC16IS750_REG_XOFF1

◆ SC16IS750_REG_XOFF2

◆ SC16IS750_REG_XON1

◆ SC16IS750_REG_XON2
