Arduino Stream interface for IEEE 802.15.4 transceiver. More...

#include <ESP32TransceiverStreamIEEE802_15_4.h>

Inheritance diagram for ieee802154::ESP32TransceiverStreamIEEE802_15_4:

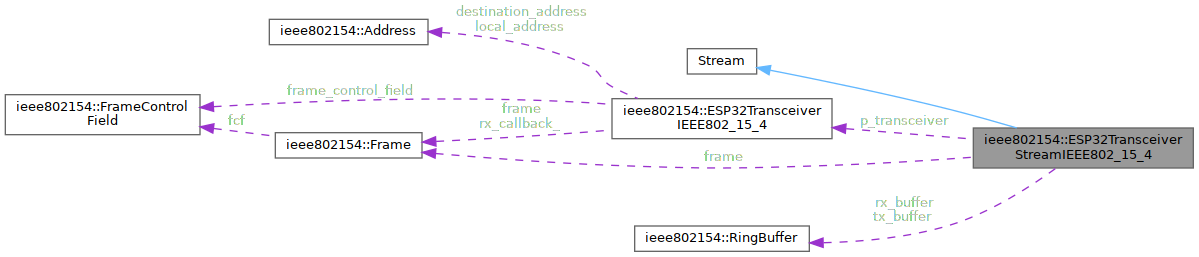

Collaboration diagram for ieee802154::ESP32TransceiverStreamIEEE802_15_4:

[legend]

Public Member Functions
virtual int	available () override
	Get the number of bytes available to read.

int	availableForWrite () override
	Get the number of bytes available for writing.

bool	begin ()
	Initialize the stream and underlying transceiver.

bool	begin (FrameControlField fcf)
	Initialize the stream and underlying transceiver.

void	end ()
	Deinitialize the stream and underlying transceiver.

	ESP32TransceiverStreamIEEE802_15_4 (channel_t channel, int16_t panID, Address localAdr)
	Construct a new ESP32TransceiverStream object with transceiver parameters.

	ESP32TransceiverStreamIEEE802_15_4 (ESP32TransceiverIEEE802_15_4 &transceiver)
	Construct a new ESP32TransceiverStream object.

void	flush () override
	Flush the transmit buffer and send its contents as a frame.

uint32_t	getAckTimeoutUs () const
	Get the current acknowledgment timeout in microseconds.

channel_t	getChannel () const
	Get the current IEEE 802.15.4 channel.

FrameControlField &	getFrameControlField ()
	Get the current Frame Control Field (FCF) in use.

int	getMaxMTU () const
	Get the maximum transmission unit (MTU) size for the data content.

size_t	getRxBufferSize () const
	Get the current receive buffer size in bytes.

int	getRxMessageBufferSize () const
	Get the current message buffer size for receiving frames.

int	getSendDelay () const
	Get the delay between send retries in milliseconds.

ESP32TransceiverIEEE802_15_4 &	getTransceiver ()
	Get a reference to the underlying transceiver instance.

int	getTxBufferSize () const
	Get the current transmit buffer size for the stream.

int8_t	getTxPower () const
	Get the current transmit power in dBm.

bool	isAckActive () const
	Check if acknowledgment requests are enabled for outgoing frames.

bool	isCCAActive () const
	Check if CCA (Clear Channel Assessment) is enabled.

int	peek ()
	Peek at the next byte in the receive buffer (not implemented).

int	read () override
	Read a single byte from the receive buffer.

size_t	readBytes (uint8_t *buffer, size_t size)
	Read multiple bytes from the receive buffer.

void	setAckActive (bool ack_active)
	Enable or disable acknowledgment requests for outgoing frames.

void	setAckTimeoutUs (uint32_t timeout_us)
	Set the time in us to wait for the ack frame.

void	setBroadcast ()
	Set the destination address to the broadcast address (0xFFFF).

void	setCCAActive (bool cca_enabled)
	Enable or disable CCA (Clear Channel Assessment).

bool	setChannel (channel_t channel)
	Set the IEEE 802.15.4 channel.

bool	setCoordinatorActive (bool coordinator)
	Set the coordinator mode for the transceiver.

void	setDestinationAddress (const Address &address)
	Set the destination address for the stream.

void	setFrameControlField (const FrameControlField &fcf)
	Set the Frame Control Field (FCF) for outgoing frames.

bool	setPromiscuousModeActive (bool promiscuous)
	Set promiscuous mode for the transceiver.

void	setRxBufferSize (size_t size)
	Set the size of the receive buffer. This defines how many bytes we can get by calling readBytes();.

void	setRxMessageBufferSize (int size)
	Set the size of the message buffer used for receiving frames.

bool	setRxWhenIdleActive (bool rx_when_idle)
	Set RX when idle mode for the transceiver.

void	setSendDelay (int delay_ms)
	Set the delay between sends or send retries.

void	setSendRetryCount (int count)
	Defines the retry count for faild send requests.

bool	setTxBufferSize (int buffer_size)
	Set the transmit buffer size for the stream. This defines how much data can be buffered for sending before it is flushed.

bool	setTxPower (int power)
	Set the transmit power in dBm.

size_t	write (const uint8_t *buffer, size_t size) override
	Write a buffer of bytes to the transceiver.

size_t	write (const uint8_t byte) override
	Write a single byte to the transceiver.

	~ESP32TransceiverStreamIEEE802_15_4 ()
	Destroy the ESP32TransceiverStream object.

Protected Types
enum	send_confirmation_state_t { WAITING_FOR_CONFIRMATION , CONFIRMATION_RECEIVED , CONFIRMATION_ERROR }

Protected Member Functions
bool	isSendConfirmations ()

bool	isSequenceNumbers ()

bool	receive ()
	Internal method to receive frames and fill the receive buffer.

void	sendWithConfirmations ()
	Internal method to send a frame with confirmation handling. Retries sending the frame if confirmation fails, with a delay between attempts.

void	sendWithoutConfirmations ()
	Internal method to send a frame without waiting for confirmations. Adds a delay after sending to allow the transceiver to process the frame.

Static Protected Member Functions
static void	ieee802154_transceiver_tx_done_callback (const uint8_t frame, const uint8_t ack, esp_ieee802154_frame_info_t ack_frame_info, void user_data)
	Callback for successful frame transmission.

static void	ieee802154_transceiver_tx_failed_callback (const uint8_t frame, esp_ieee802154_tx_error_t error, void user_data)
	Callback for failed frame transmission.

Protected Attributes
Frame	frame

bool	is_auto_flush = false

bool	is_open_frame = false

bool	is_send_confirations_enabled = false

int	last_seq = -1

esp_ieee802154_tx_error_t	last_tx_error = ESP_IEEE802154_TX_ERR_NONE

bool	owns_transceiver = false

ESP32TransceiverIEEE802_15_4 *	p_transceiver = nullptr

int	receive_msg_buffer_size

RingBuffer	rx_buffer {1024 + MTU}

volatile send_confirmation_state_t	send_confirmation_state

int	send_delay_ms = 10
	Delay after sending a frame when confirmations are not used.

int	send_retry_count = 2

RingBuffer	tx_buffer {MTU}

Static Protected Attributes
static constexpr int	MTU = 116

static constexpr const char *	TAG = "ESP32TransceiverStream"

Detailed Description

Arduino Stream interface for IEEE 802.15.4 transceiver.

Allows using ESP32TransceiverIEEE802_15_4 as a Stream for easy integration with Arduino APIs and libraries that expect a Stream object. Provides buffered read/write access to the transceiver.

If you want to control the creation of the individual frame segments, write data smaller than the MTU (127 bytes) and call flush() to send the frame immediately.

When you write data to the stream, that is bigger than the MTU, it is automatically split into multiple frames and sent one after another.

When you enable acknowledgment requests for outgoing frames, the stream will wait for the acknowledgment frame from the receiver before sending the next frame. If the acknowledgment is not received within the configured timeout, the stream will retry sending the frame after a delay. This process will repeat until the frame is acknowledged or a maximum number of retries is reached.

Member Enumeration Documentation

◆ send_confirmation_state_t

enum ieee802154::ESP32TransceiverStreamIEEE802_15_4::send_confirmation_state_t

protected

Enumerator
WAITING_FOR_CONFIRMATION
CONFIRMATION_RECEIVED
CONFIRMATION_ERROR

Constructor & Destructor Documentation

◆ ESP32TransceiverStreamIEEE802_15_4() [1/2]

ieee802154::ESP32TransceiverStreamIEEE802_15_4::ESP32TransceiverStreamIEEE802_15_4 ( ESP32TransceiverIEEE802_15_4 & transceiver )

inline

Construct a new ESP32TransceiverStream object.

Parameters

transceiver Reference to the IEEE802.15.4 transceiver instance.

◆ ESP32TransceiverStreamIEEE802_15_4() [2/2]

ieee802154::ESP32TransceiverStreamIEEE802_15_4::ESP32TransceiverStreamIEEE802_15_4	(	channel_t	channel,
		int16_t	panID,
		Address	localAdr
	)

inline

Construct a new ESP32TransceiverStream object with transceiver parameters.

Parameters

channel	The IEEE 802.15.4 channel to use.
panID	The Personal Area Network Identifier to use for the transceiver.
localAddress	The local address for the device.

◆ ~ESP32TransceiverStreamIEEE802_15_4()

ieee802154::ESP32TransceiverStreamIEEE802_15_4::~ESP32TransceiverStreamIEEE802_15_4 ( )

inline

Destroy the ESP32TransceiverStream object.

Member Function Documentation

◆ available()

virtual int ieee802154::ESP32TransceiverStreamIEEE802_15_4::available ( )

inlineoverridevirtual

Get the number of bytes available to read.

Returns: Number of bytes available in the receive buffer.

◆ availableForWrite()

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::availableForWrite ( )

inlineoverride

Get the number of bytes available for writing.

Returns: Always returns 1024.

◆ begin() [1/2]

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::begin ( )

inline

Initialize the stream and underlying transceiver.

Returns: True on success, false otherwise.

◆ begin() [2/2]

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::begin ( FrameControlField fcf )

inline

Initialize the stream and underlying transceiver.

Returns: True on success, false otherwise.

◆ end()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::end ( )

inline

Deinitialize the stream and underlying transceiver.

◆ flush()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::flush ( )

inlineoverride

Flush the transmit buffer and send its contents as a frame.

Sends all buffered data via the transceiver and clears the buffer.

◆ getAckTimeoutUs()

uint32_t ieee802154::ESP32TransceiverStreamIEEE802_15_4::getAckTimeoutUs ( ) const

inline

Get the current acknowledgment timeout in microseconds.

Returns: The acknowledgment timeout in microseconds.

◆ getChannel()

channel_t ieee802154::ESP32TransceiverStreamIEEE802_15_4::getChannel ( ) const

inline

Get the current IEEE 802.15.4 channel.

Returns: The current channel.

◆ getFrameControlField()

FrameControlField & ieee802154::ESP32TransceiverStreamIEEE802_15_4::getFrameControlField ( )

inline

Get the current Frame Control Field (FCF) in use.

Returns: The current FrameControlField structure.

◆ getMaxMTU()

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::getMaxMTU ( ) const

inline

Get the maximum transmission unit (MTU) size for the data content.

Returns: The MTU size in bytes: 116 bytes for data payload (127 bytes total frame size minus 11 bytes for frame overhead).

◆ getRxBufferSize()

size_t ieee802154::ESP32TransceiverStreamIEEE802_15_4::getRxBufferSize ( ) const

inline

Get the current receive buffer size in bytes.

Returns: The size of the receive buffer.

◆ getRxMessageBufferSize()

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::getRxMessageBufferSize ( ) const

inline

Get the current message buffer size for receiving frames.

Returns: The size of the message buffer in bytes.

◆ getSendDelay()

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::getSendDelay ( ) const

inline

Get the delay between send retries in milliseconds.

Returns: The retry delay in ms.

◆ getTransceiver()

ESP32TransceiverIEEE802_15_4 & ieee802154::ESP32TransceiverStreamIEEE802_15_4::getTransceiver ( )

inline

Get a reference to the underlying transceiver instance.

Returns: Reference to the ESP32TransceiverIEEE802_15_4 instance.

◆ getTxBufferSize()

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::getTxBufferSize ( ) const

inline

Get the current transmit buffer size for the stream.

Returns: The size of the transmit buffer in bytes (default 116 bytes).

◆ getTxPower()

int8_t ieee802154::ESP32TransceiverStreamIEEE802_15_4::getTxPower ( ) const

inline

Get the current transmit power in dBm.

Returns: The transmit power.

◆ ieee802154_transceiver_tx_done_callback()

static void ieee802154::ESP32TransceiverStreamIEEE802_15_4::ieee802154_transceiver_tx_done_callback	(	const uint8_t *	frame,
		const uint8_t *	ack,
		esp_ieee802154_frame_info_t *	ack_frame_info,
		void *	user_data
	)

inlinestaticprotected

Callback for successful frame transmission.

◆ ieee802154_transceiver_tx_failed_callback()

static void ieee802154::ESP32TransceiverStreamIEEE802_15_4::ieee802154_transceiver_tx_failed_callback	(	const uint8_t *	frame,
		esp_ieee802154_tx_error_t	error,
		void *	user_data
	)

inlinestaticprotected

Callback for failed frame transmission.

◆ isAckActive()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::isAckActive ( ) const

inline

Check if acknowledgment requests are enabled for outgoing frames.

Returns: True if acknowledgment requests are enabled, false otherwise.

◆ isCCAActive()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::isCCAActive ( ) const

inline

Check if CCA (Clear Channel Assessment) is enabled.

Returns: True if CCA is enabled, false otherwise.

◆ isSendConfirmations()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::isSendConfirmations ( )

inlineprotected

◆ isSequenceNumbers()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::isSequenceNumbers ( )

inlineprotected

◆ peek()

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::peek ( )

inline

Peek at the next byte in the receive buffer (not implemented).

Returns: The next byte, or -1 if no data is available.

◆ read()

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::read ( )

inlineoverride

Read a single byte from the receive buffer.

Returns: The byte read, or -1 if no data is available.

◆ readBytes()

size_t ieee802154::ESP32TransceiverStreamIEEE802_15_4::readBytes	(	uint8_t *	buffer,
		size_t	size
	)

inline

Read multiple bytes from the receive buffer.

Parameters

buffer	Pointer to destination buffer.
size	Number of bytes to read.

Returns: Number of bytes actually read.

◆ receive()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::receive ( )

inlineprotected

Internal method to receive frames and fill the receive buffer.

Returns: True if a frame was received and processed, false otherwise.

◆ sendWithConfirmations()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::sendWithConfirmations ( )

inlineprotected

Internal method to send a frame with confirmation handling. Retries sending the frame if confirmation fails, with a delay between attempts.

◆ sendWithoutConfirmations()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::sendWithoutConfirmations ( )

inlineprotected

Internal method to send a frame without waiting for confirmations. Adds a delay after sending to allow the transceiver to process the frame.

◆ setAckActive()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setAckActive ( bool ack_active )

inline

Enable or disable acknowledgment requests for outgoing frames.

Parameters

ack_active True to enable acknowledgment requests, false to disable.

Note: This method must be called before begin() to take effect!

◆ setAckTimeoutUs()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setAckTimeoutUs ( uint32_t timeout_us )

inline

Set the time in us to wait for the ack frame.

Parameters

[in] timeout The time to wait for the ack frame, in us. It Should be a multiple of 16.

◆ setBroadcast()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setBroadcast ( )

inline

Set the destination address to the broadcast address (0xFFFF).

◆ setCCAActive()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setCCAActive ( bool cca_enabled )

inline

Enable or disable CCA (Clear Channel Assessment).

Parameters

cca_enabled True to enable CCA (Clear Channel Assessment), false to disable.

◆ setChannel()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::setChannel ( channel_t channel )

inline

Set the IEEE 802.15.4 channel.

Parameters

channel The channel to set.

Returns: True if the channel was set successfully, false otherwise.

◆ setCoordinatorActive()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::setCoordinatorActive ( bool coordinator )

inline

Set the coordinator mode for the transceiver.

Parameters

coordinator True to enable coordinator mode, false to disable.

Returns: True if the mode was set successfully, false otherwise.

◆ setDestinationAddress()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setDestinationAddress ( const Address & address )

inline

Set the destination address for the stream.

Parameters

address The destination address.

◆ setFrameControlField()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setFrameControlField ( const FrameControlField & fcf )

inline

Set the Frame Control Field (FCF) for outgoing frames.

Parameters

fcf	The frame control field structure to use.

Note: This method must be called before begin() to take effect!

◆ setPromiscuousModeActive()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::setPromiscuousModeActive ( bool promiscuous )

inline

Set promiscuous mode for the transceiver.

Parameters

promiscuous True to enable promiscuous mode, false to disable.

Returns: True if the mode was set successfully, false otherwise.

◆ setRxBufferSize()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setRxBufferSize ( size_t size )

inline

Set the size of the receive buffer. This defines how many bytes we can get by calling readBytes();.

Parameters

size	New size of the receive buffer.

◆ setRxMessageBufferSize()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setRxMessageBufferSize ( int size )

inline

Set the size of the message buffer used for receiving frames.

Parameters

size	New size of the message buffer in bytes.

Note: This method must be called before begin() to take effect.

◆ setRxWhenIdleActive()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::setRxWhenIdleActive ( bool rx_when_idle )

inline

Set RX when idle mode for the transceiver.

Parameters

rx_when_idle True to enable RX when idle, false to disable.

Returns: True if the mode was set successfully, false otherwise.

◆ setSendDelay()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setSendDelay ( int delay_ms )

inline

Set the delay between sends or send retries.

Parameters

delay_ms Delay in milliseconds.

◆ setSendRetryCount()

void ieee802154::ESP32TransceiverStreamIEEE802_15_4::setSendRetryCount ( int count )

inline

Defines the retry count for faild send requests.

Parameters

count Number of retries.

◆ setTxBufferSize()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::setTxBufferSize ( int buffer_size )

inline

Set the transmit buffer size for the stream. This defines how much data can be buffered for sending before it is flushed.

Parameters

buffer_size The desired buffer size in bytes. Must be greater than 0 but not exceed the maximum data MTU size.

Returns: True if the buffer size was set successfully, false if the specified size is invalid.

◆ setTxPower()

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::setTxPower ( int power )

inline

Set the transmit power in dBm.

Parameters

power Transmit power value to set (in dBm). -24 dBm to +20 dBm

Returns: True if the power was set successfully, false otherwise.

◆ write() [1/2]

size_t ieee802154::ESP32TransceiverStreamIEEE802_15_4::write	(	const uint8_t *	buffer,
		size_t	size
	)

inlineoverride

Write a buffer of bytes to the transceiver.

Parameters

buffer	Pointer to data buffer.
size	Number of bytes to write.

Returns: Number of bytes written.

◆ write() [2/2]

size_t ieee802154::ESP32TransceiverStreamIEEE802_15_4::write ( const uint8_t byte )

inlineoverride

Write a single byte to the transceiver.

Parameters

byte	Byte to write.

Returns: 1 if written, 0 otherwise.

Member Data Documentation

◆ frame

Frame ieee802154::ESP32TransceiverStreamIEEE802_15_4::frame

protected

◆ is_auto_flush

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::is_auto_flush = false

protected

◆ is_open_frame

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::is_open_frame = false

protected

◆ is_send_confirations_enabled

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::is_send_confirations_enabled = false

protected

◆ last_seq

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::last_seq = -1

protected

◆ last_tx_error

esp_ieee802154_tx_error_t ieee802154::ESP32TransceiverStreamIEEE802_15_4::last_tx_error = ESP_IEEE802154_TX_ERR_NONE

protected

◆ MTU

constexpr int ieee802154::ESP32TransceiverStreamIEEE802_15_4::MTU = 116

staticconstexprprotected

◆ owns_transceiver

bool ieee802154::ESP32TransceiverStreamIEEE802_15_4::owns_transceiver = false

protected

◆ p_transceiver

ESP32TransceiverIEEE802_15_4* ieee802154::ESP32TransceiverStreamIEEE802_15_4::p_transceiver = nullptr

protected

◆ receive_msg_buffer_size

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::receive_msg_buffer_size

protected

Initial value:

=

(sizeof(frame_data_t) + 4) * 100

◆ rx_buffer

RingBuffer ieee802154::ESP32TransceiverStreamIEEE802_15_4::rx_buffer {1024 + MTU}

protected

◆ send_confirmation_state

volatile send_confirmation_state_t ieee802154::ESP32TransceiverStreamIEEE802_15_4::send_confirmation_state

protected

Initial value:

=

WAITING_FOR_CONFIRMATION

ieee802154::ESP32TransceiverStreamIEEE802_15_4::WAITING_FOR_CONFIRMATION

@ WAITING_FOR_CONFIRMATION

Definition ESP32TransceiverStreamIEEE802_15_4.h:427

◆ send_delay_ms

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::send_delay_ms = 10

protected

Delay after sending a frame when confirmations are not used.

◆ send_retry_count

int ieee802154::ESP32TransceiverStreamIEEE802_15_4::send_retry_count = 2

protected

◆ TAG

constexpr const char* ieee802154::ESP32TransceiverStreamIEEE802_15_4::TAG = "ESP32TransceiverStream"

staticconstexprprotected

◆ tx_buffer

RingBuffer ieee802154::ESP32TransceiverStreamIEEE802_15_4::tx_buffer {MTU}

protected

The documentation for this class was generated from the following file:

src/ESP32TransceiverStreamIEEE802_15_4.h

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ send_confirmation_state_t

Constructor & Destructor Documentation

◆ ESP32TransceiverStreamIEEE802_15_4() [1/2]

◆ ESP32TransceiverStreamIEEE802_15_4() [2/2]

◆ ~ESP32TransceiverStreamIEEE802_15_4()

Member Function Documentation

◆ available()

◆ availableForWrite()

◆ begin() [1/2]

◆ begin() [2/2]

◆ end()

◆ flush()

◆ getAckTimeoutUs()

◆ getChannel()

◆ getFrameControlField()

◆ getMaxMTU()

◆ getRxBufferSize()

◆ getRxMessageBufferSize()

◆ getSendDelay()

◆ getTransceiver()

◆ getTxBufferSize()

◆ getTxPower()

◆ ieee802154_transceiver_tx_done_callback()

◆ ieee802154_transceiver_tx_failed_callback()

◆ isAckActive()

◆ isCCAActive()

◆ isSendConfirmations()

◆ isSequenceNumbers()

◆ peek()

◆ read()

◆ readBytes()

◆ receive()

◆ sendWithConfirmations()

◆ sendWithoutConfirmations()

◆ setAckActive()

◆ setAckTimeoutUs()

◆ setBroadcast()

◆ setCCAActive()

◆ setChannel()

◆ setCoordinatorActive()

◆ setDestinationAddress()

◆ setFrameControlField()

◆ setPromiscuousModeActive()

◆ setRxBufferSize()

◆ setRxMessageBufferSize()

◆ setRxWhenIdleActive()

◆ setSendDelay()

◆ setSendRetryCount()

◆ setTxBufferSize()

◆ setTxPower()

◆ write() [1/2]

◆ write() [2/2]

Member Data Documentation

◆ frame

◆ is_auto_flush

◆ is_open_frame

◆ is_send_confirations_enabled

◆ last_seq

◆ last_tx_error

◆ MTU

◆ owns_transceiver

◆ p_transceiver

◆ receive_msg_buffer_size

◆ rx_buffer

◆ send_confirmation_state

◆ send_delay_ms

◆ send_retry_count

◆ TAG

◆ tx_buffer
