pico-arduino
We can also change the default pins also by re-defining them in the CMakeLists.txt
set(ARDUINO_SKETCH_DEFINITIONS "-DSERIAL2_TX=12" "-DSERIAL2_RX=13")
The name of all the availalable pins can be found in the pins_arduino.h file.

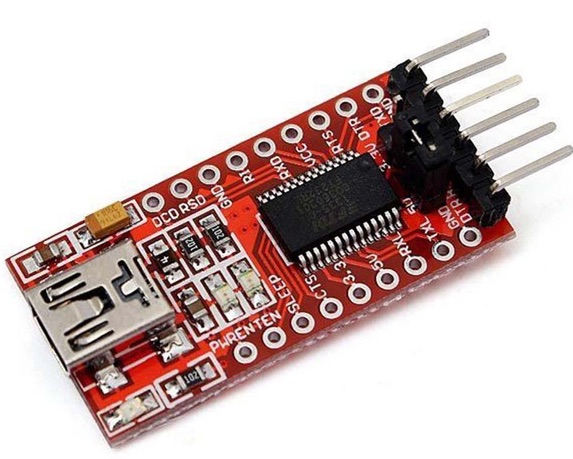

Connections for the YP-05
Before making any connectins, make sure that the jumper is set to 3.3V !
| YP-05 | Pico |
|---|---|
| RX | TX (GPIO 12) |
| TX | RX (GPIO 13) |
| GND | GND |
You can connect with any Termial Emulation using the following settings
- Speed: 115200
- Data Bits: 8
- Parity: None
- Stop Bits: 1
- No Hardware flow control
